Hose Handling Systems

EMSTEC Hose Handling Systems are the most safe and efficient way to deal with storing, deploying and recovering any flexible hose configurations off- and onshore. Customised designs suitable for individual applications and installations worldwide are available.

Fluid Transfer System

Fluid Transfer System

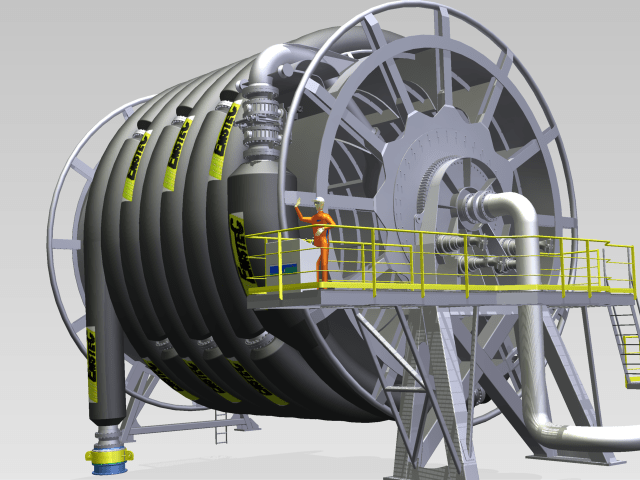

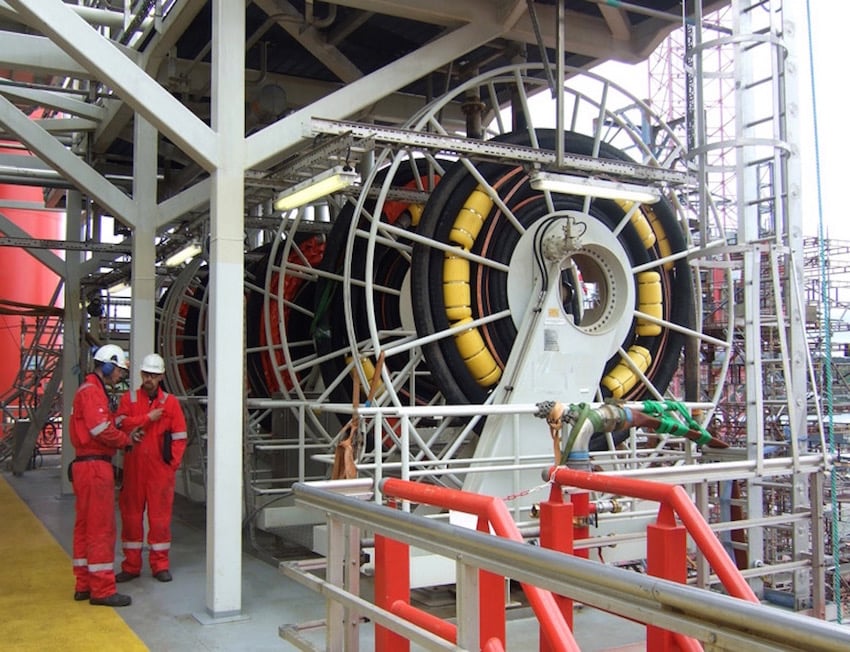

Hose Reel

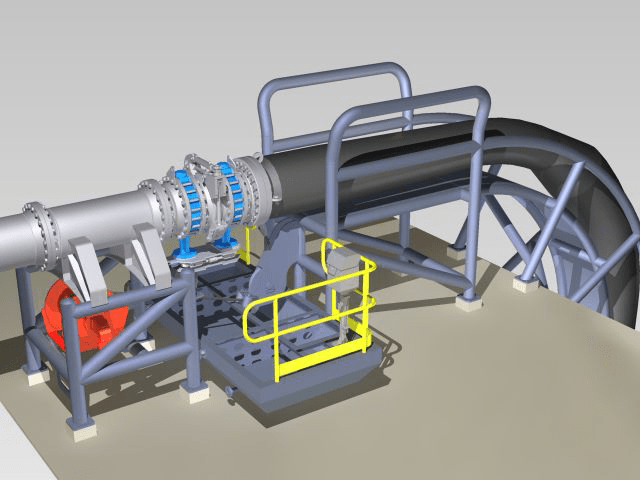

Cantilever System

Fluid Transfer System

EMSTEC Fluid Transfer Systems provide safe and efficient loading and offloading operations in various offshore and onshore applications. Typically, these systems will utilise flexible pipe to transfer crude oil or other media in dynamic applications, and include means for storage, deployment and recovery of the flexible pipe, and will incorporate power, control and utility equipment. Various hose storage reels, chutes or outboard platform stations are available, specifically configured and designed to suit individual applications and installations worldwide. Tandem Mooring, handling and storage systems complement our fluid transfer systems. EMSTEC provide comprehensive and fully integrated transfer systems with reliable and simple operation.

Applications

  • Crude Oil Loading / Offloading
  • Methanol Loading / Offloading
  • Condensate Offloading
  • Well Intervention / Work-Over Systems



Our equipment Solutions

  • Hose Reel systems (Bow & Stern deck storage arrangement)
  • Hose Chute system (Inboard hose connection - supported hose arrangement)
  • Cantilever A-Frame system (Outboard hose connection - hanging hose arrangement)
  • LP/HP Hose Storage Reel, Spooling & Sheave Systems
  • Umbilical Storage Reel
  • Special/Bespoke systems



Our equipment integration

  • Electro/Hydraulic Power Unit or Ring Main systems
  • PLC Control & Monitoring systems
  • ICS interfaces
  • Foundation/Deck Loading analysis



For any queries, please contact us.

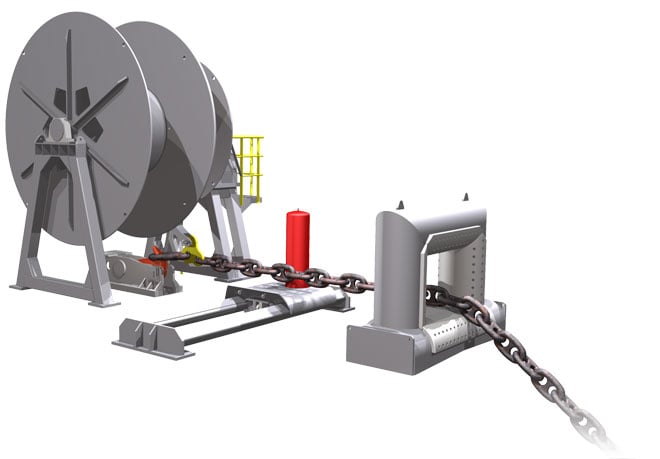

Tandem Connection System

Tandem Connection System

Tandem Connection System

EMSTEC Tandem Connection System provide safe and efficient methods to moor offshore loading terminals with oil carriers securely and provide safe connections for the transfer of cargo fluids between the vessels.

The systems provide a means to store, deploy and retrieve the mooring hawser string and the cargo loading string, efficiently and economically. The Tandem Connection System vary from simple open deck arrangements, to integrate enclosures for poor weather conditions. The Tandem Connection System incorporate the individual Tandem Mooring System and the Fluid Transfer System together, providing a single combination of securing the vessels and then transferring the fluid cargo. EMSTEC provide comprehensive and fully integrated systems to meet specific client requirements.



Applications

  • FPSO/FSO Tandem Crude Oil Loading / Offloading
  • LNG FPSO Tandem Condensate Offloading

Our equipment solutions

  • Bow Connection System (outboard connection)
  • Bow Connection System (inboard connection)
  • 'Chute' type Loading System (inboard connection manifold)
  • 'A-Frame' type Loading System (outboard connection)
  • Hose/Hawser Pull-in equipment
  • Special/Bespoke systems

Our equipment integration

  • Electro/Hydraulic Power Unit or Ring Main systems
  • PLC Control, Telemetry & Monitoring systems
  • ICS interfaces
  • Foundation/Deck Loading analysis

For any queries, please contact us.

Hose Loading System

Hose Loading System

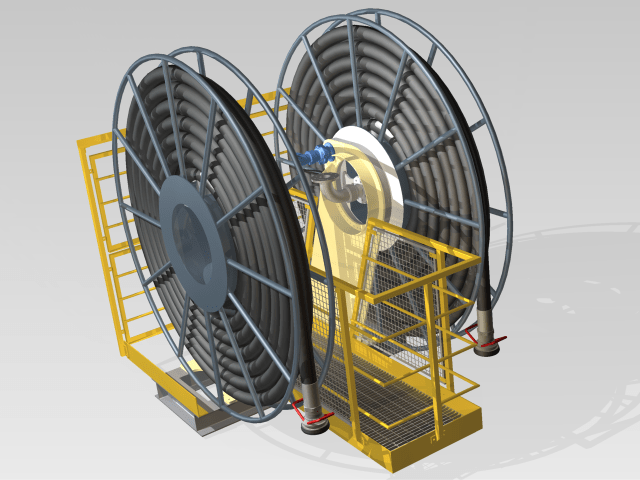

Double Reel

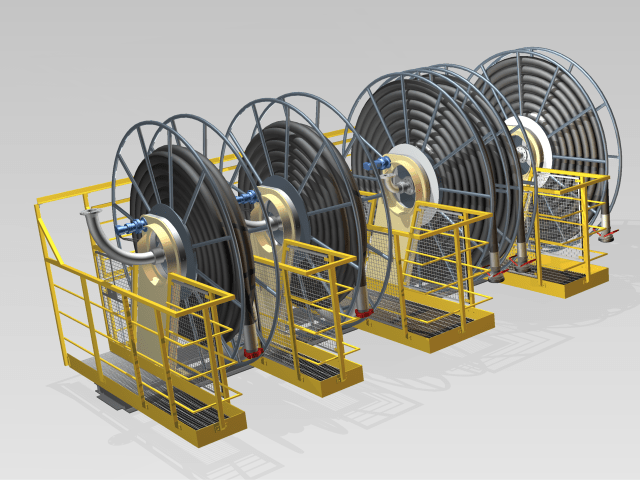

Multi Reel

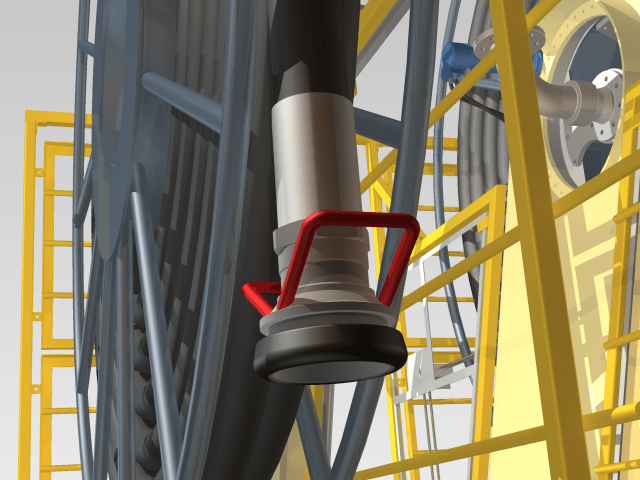

Connection System

Hose Loading System

EMSTEC Hose Loading Station's provide safe and efficient operation and storage of bulk loading hoses used for fluid or powder transfer operations. Single, double or multi-reel stations are available, specifically configured and designed to suit individual applications and installations worldwide.

Hose assemblies, connectors and reel pipe work materials are selected for compatibility with project specifications.

The stations are supplied with self-contained hydraulic power and control units. Optional pneumatic or electrical drive and control systems are available.



General Product Range

  • Drill Fluid/Powder Bunkering / Loading (Semi-Submersibles , Jack-Ups, Drill-Ships)
  • Potable Water / Diesel replenishment (FPSO, FSO, FSU etc.)
  • Seawater Delivery (Semi-submersibles, Jack-ups etc.)
  • Methanol Bunkering



Our equipment Solutions

  • Multi-Reel Hose Stations
  • Double Reel Hose stations
  • Single Reel Hose stations
  • Arctic/Harsh Environment/Winterization
  • 10 - 20 Bar WP Heavy-duty kink-recoverable hose assemblies
  • Supply vessel connection compatibility (i.e. Todo, Wing Unions, Merpol, etc)
  • Special/Bespoke systems



Our equipment integration

  • Self-contained Electro/ Hydraulic Power Unit or Ring Main Systems
  • Hydraulic or Pneumatic Drive
  • Electrical Control & Monitoring Systems
  • Foundation/Deck Loading analysis

For any queries, please contact us.

Marine Coupling System

Marine Coupling System

Marine Coupling System

EMSTEC provides a range of Marine Coupling Systems individually configured and designed to suit bespoke applications and installations worldwide.

Systems can incorporate Bow Connector Couplings, Quick Release Couplings, Emergency Disconnect Couplings and Valved Breakaway / Weak-link Couplings with materials and surface protection selected to suit individual Project specifications.

EMSTEC provides comprehensive and fully integrated systems with reliable and simple operation. All systems are supplied fully tested and certified in accordance with Project requirements. Systems are tailored to meet specific client requirements.



Applications

  • FPSO/FSO Tandem Crude Oil Loading / Offloading
  • LNG FPSO Tandem Condensate Offloading
  • CALM Crude Oil Offloading

Our equipment Solutions

  • Various Hose End Valves
  • Emergency Release Coupling Systems
  • QC/DC Coupling Systems
  • Weak-Link / Break-away Couplings
  • Dry-Break Couplings
  • Special/Bespoke systems

Our equipment integration

  • Electro/Hydraulic Power Unit or Ring Main systems
  • PLC Control & Monitoring systems
  • ICS interfaces
  • Foundation/Deck Loading analysis

For any queries, please contact us.

Marine Coupling System

Marine Coupling System

Marine Coupling System

EMSTEC provides a range of Marine Coupling Systems individually configured and designed to suit bespoke applications and installations worldwide.

Systems can incorporate Bow Connector Couplings, Quick Release Couplings, Emergency Disconnect Couplings and Valved Breakaway / Weak-link Couplings with materials and surface protection selected to suit individual Project specifications.

EMSTEC provides comprehensive and fully integrated systems with reliable and simple operation. All systems are supplied fully tested and certified in accordance with Project requirements. Systems are tailored to meet specific client requirements.



Applications

  • FPSO/FSO Tandem Crude Oil Loading / Offloading
  • LNG FPSO Tandem Condensate Offloading
  • CALM Crude Oil Offloading

Our equipment Solutions

  • Various Hose End Valves
  • Emergency Release Coupling Systems
  • QC/DC Coupling Systems
  • Weak-Link / Break-away Couplings
  • Dry-Break Couplings
  • Special/Bespoke systems

Our equipment integration

  • Electro/Hydraulic Power Unit or Ring Main systems
  • PLC Control & Monitoring systems
  • ICS interfaces
  • Foundation/Deck Loading analysis

For any queries, please contact us.
