Cargo offloading Hoses OCIMF / GMPHOM

EMSTEC provides a range of high quality, high performance, oil suction and discharge hoses, extensively used at offshore moorings throughout the world, which fully comply with the requirements of the "OCIMF Guide to Purchasing, Manufacturing and Testing of Loading and Discharge Hoses for Offshore Moorings, Fifth Edition - 2009". The EMSTEC Loading & Discharge hoses are available with rated working pressures of 15 BAR, 19 BAR and 21 BAR or higher for special applications or specific client requirements. Two distinctive designs within the EMSTEC hose range are available, Single Carcass and Double Carcass, floating and submarine options.

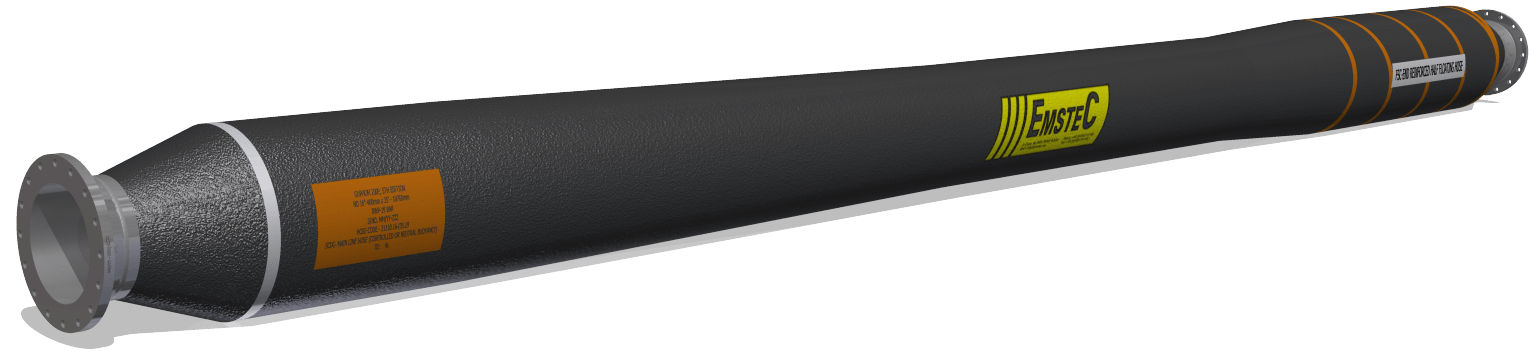

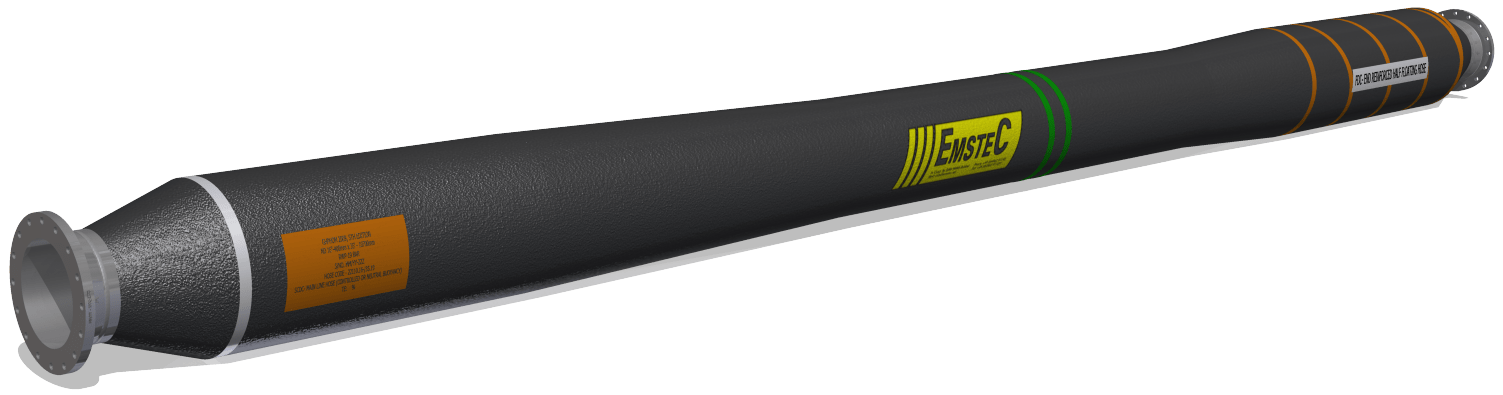

End-Reinforced Half Floating

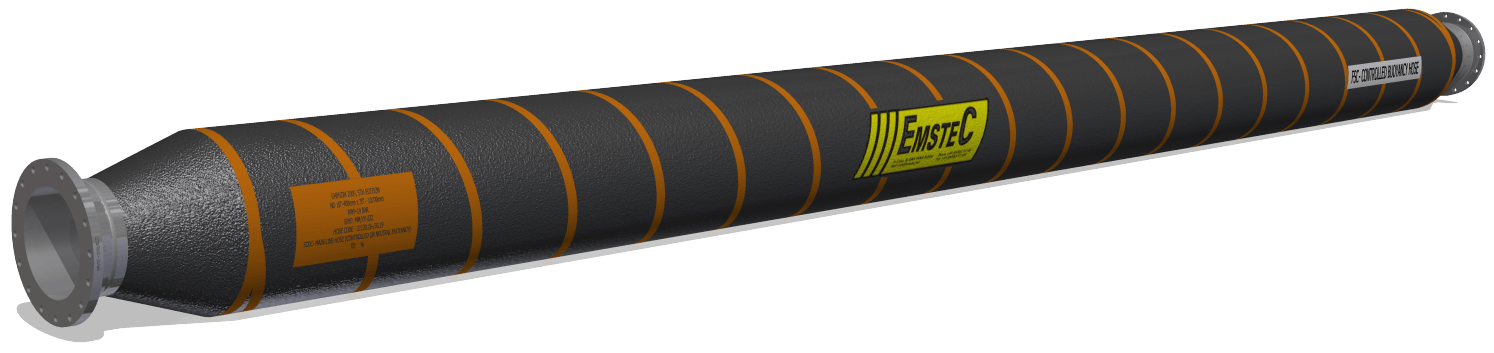

Controlled Buoyancy

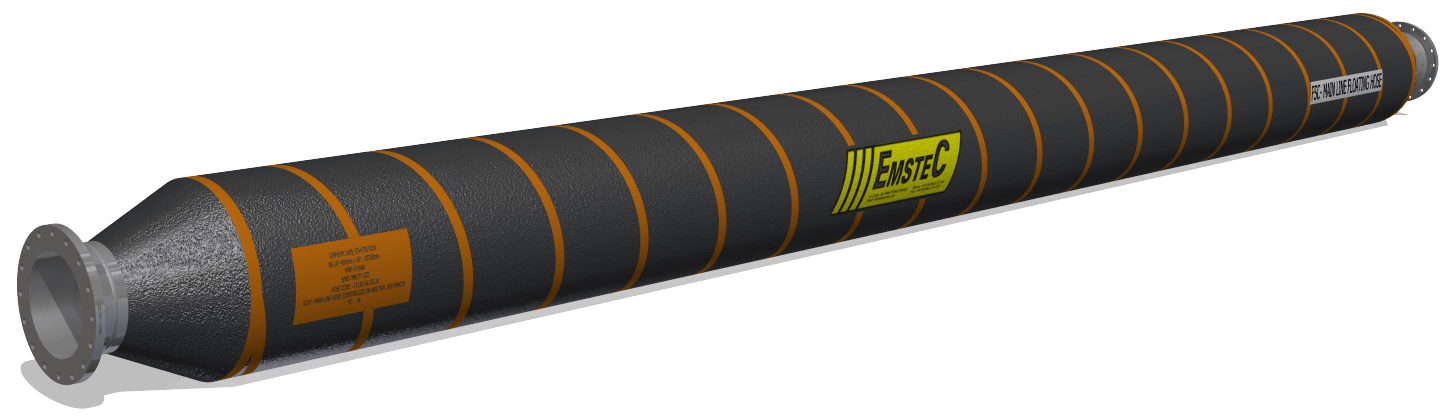

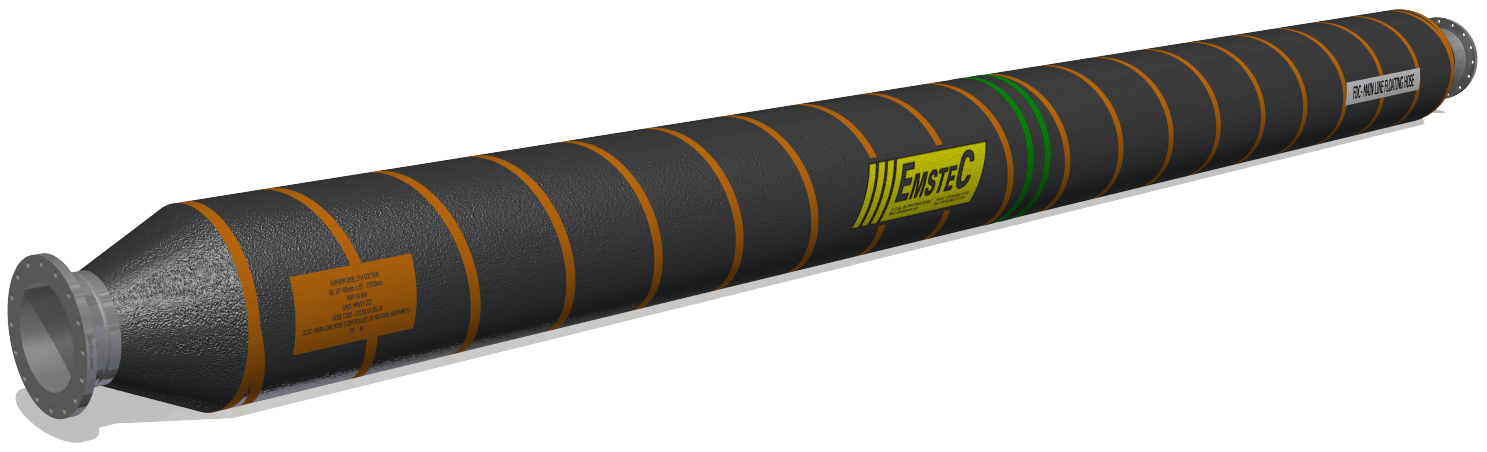

Main Line Fully Floating

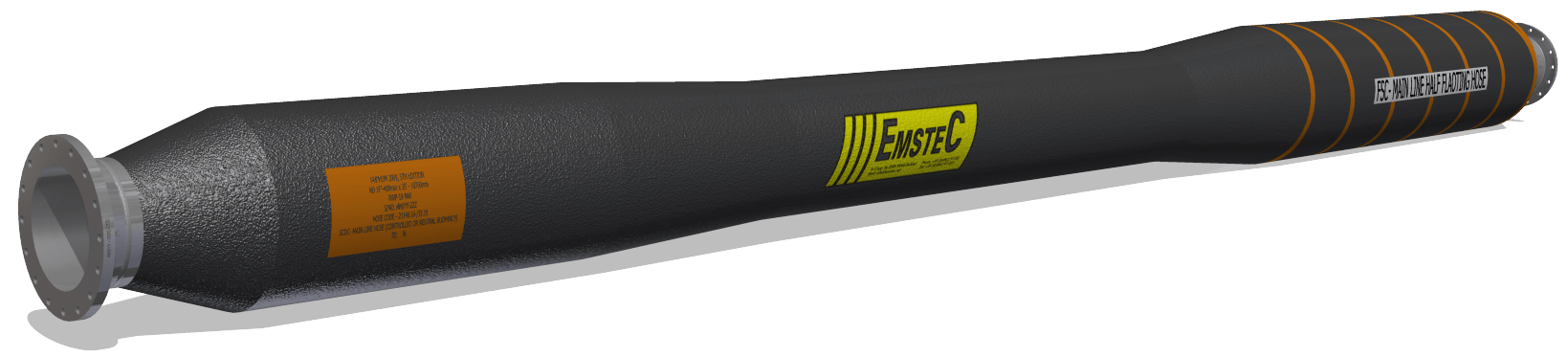

Main Line Half Floating

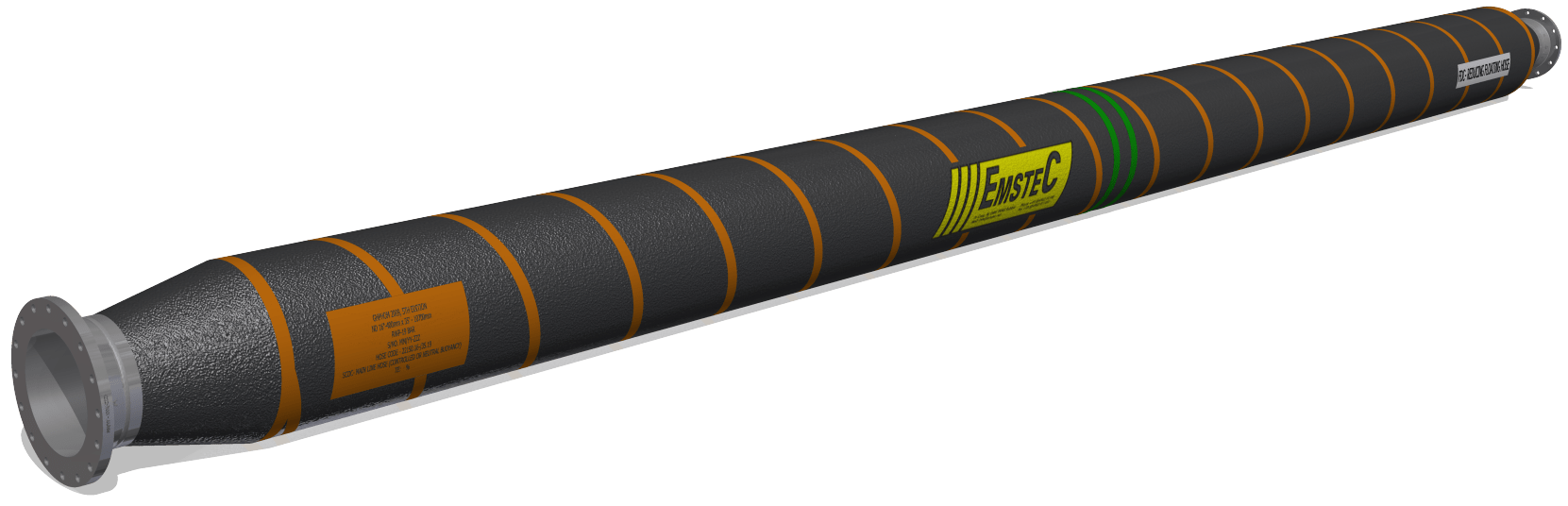

Reducing Hose Floating

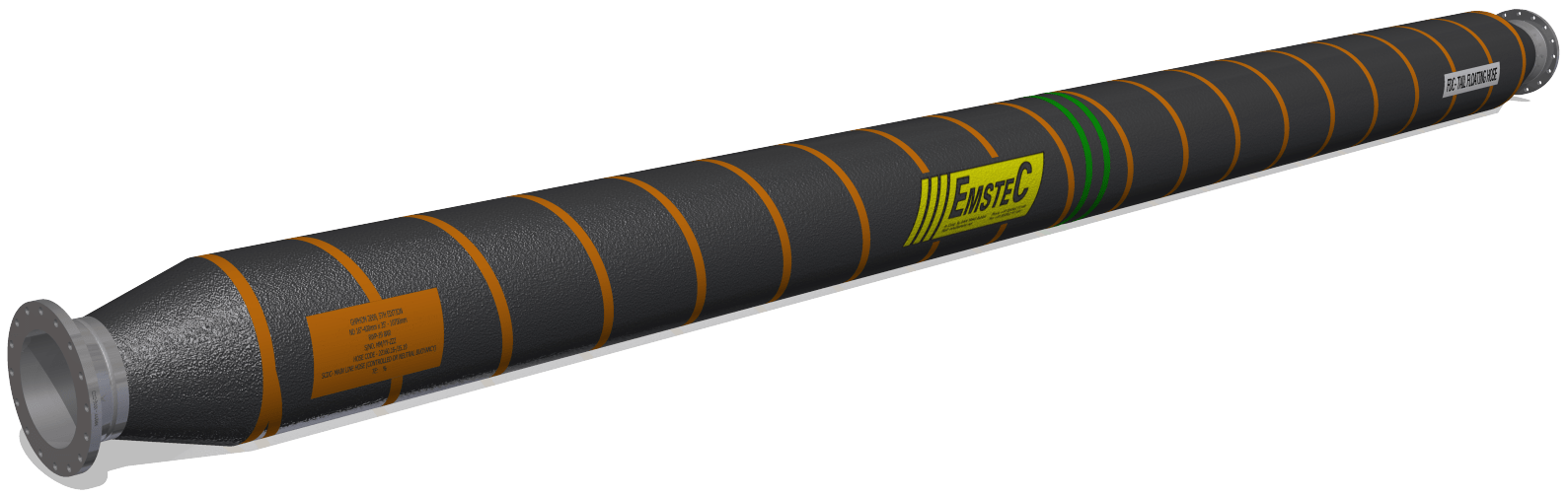

Tail Floating

Tanker Rail Floating

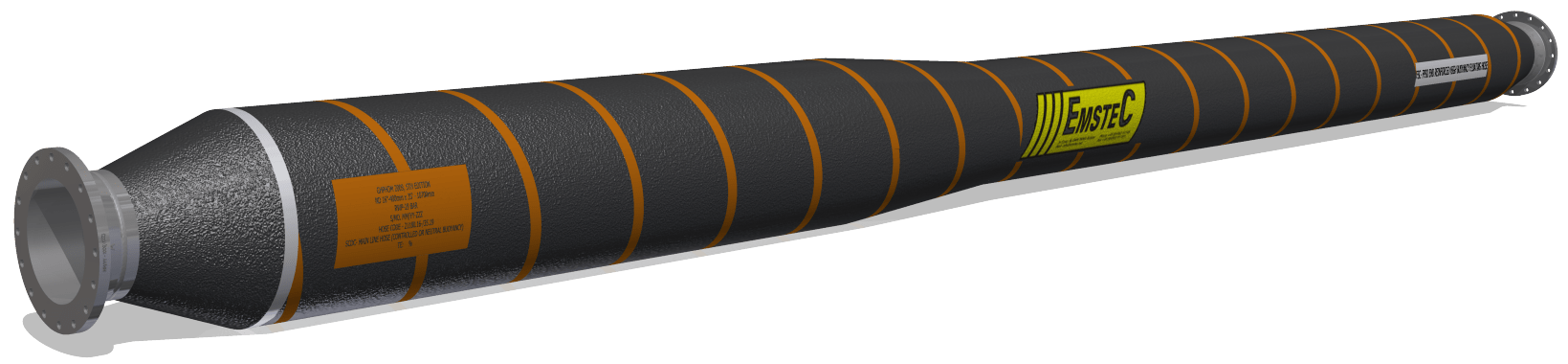

FPSO End-Reinforced High Buoyancy Floating

ST End-Reinforced High Buoyancy Floating

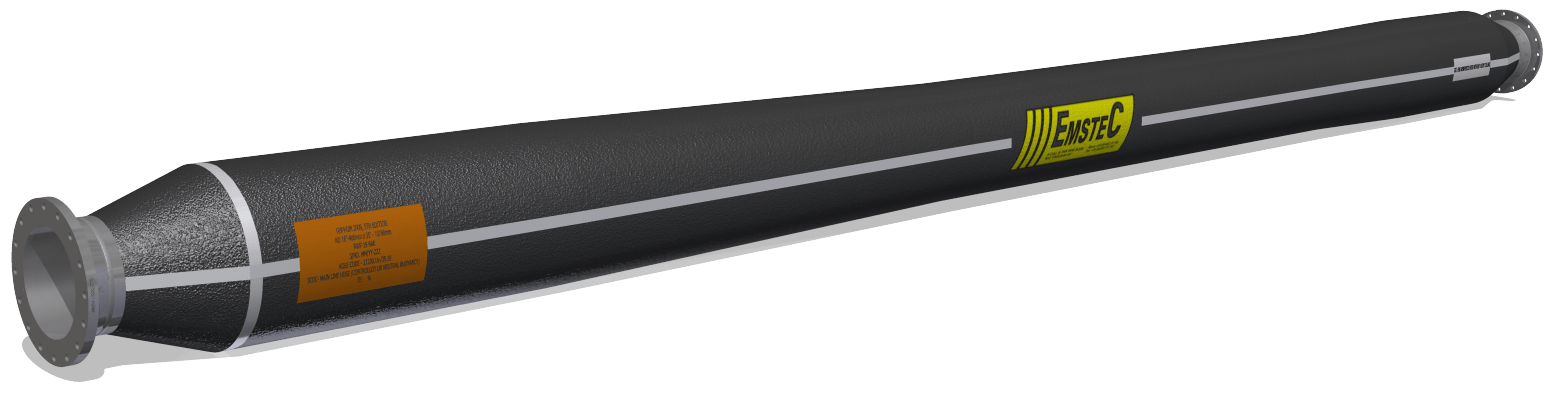

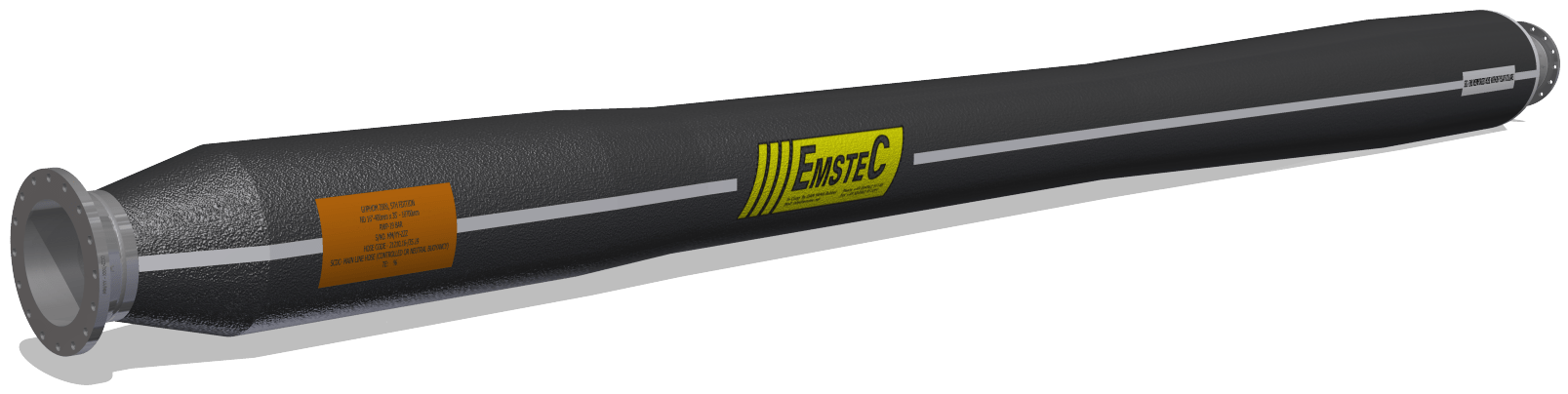

End-Reinforced without float collars i.e. under Buoy

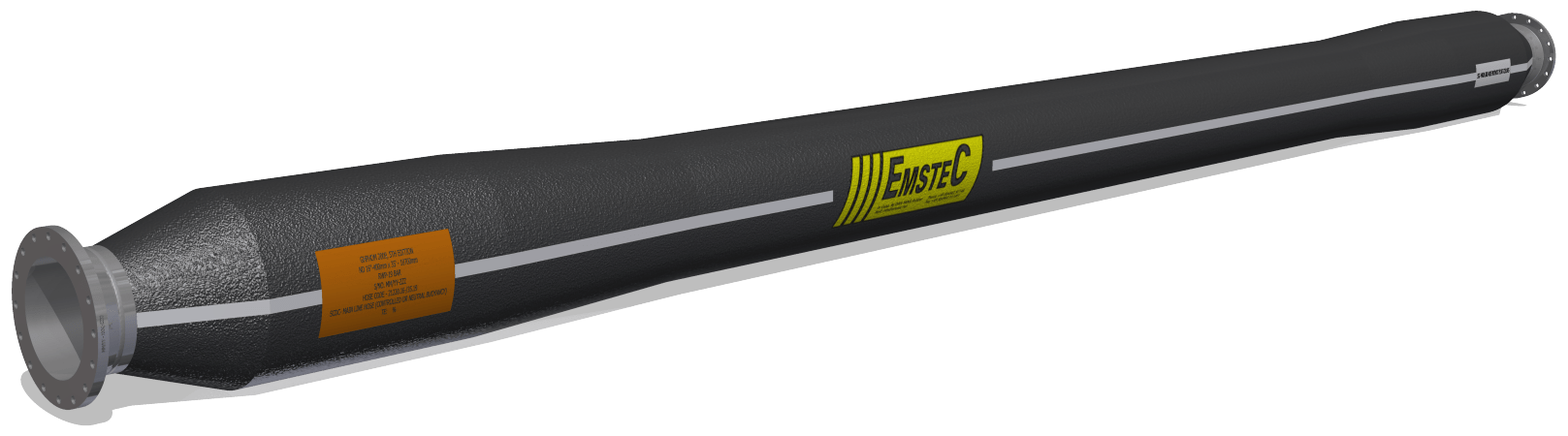

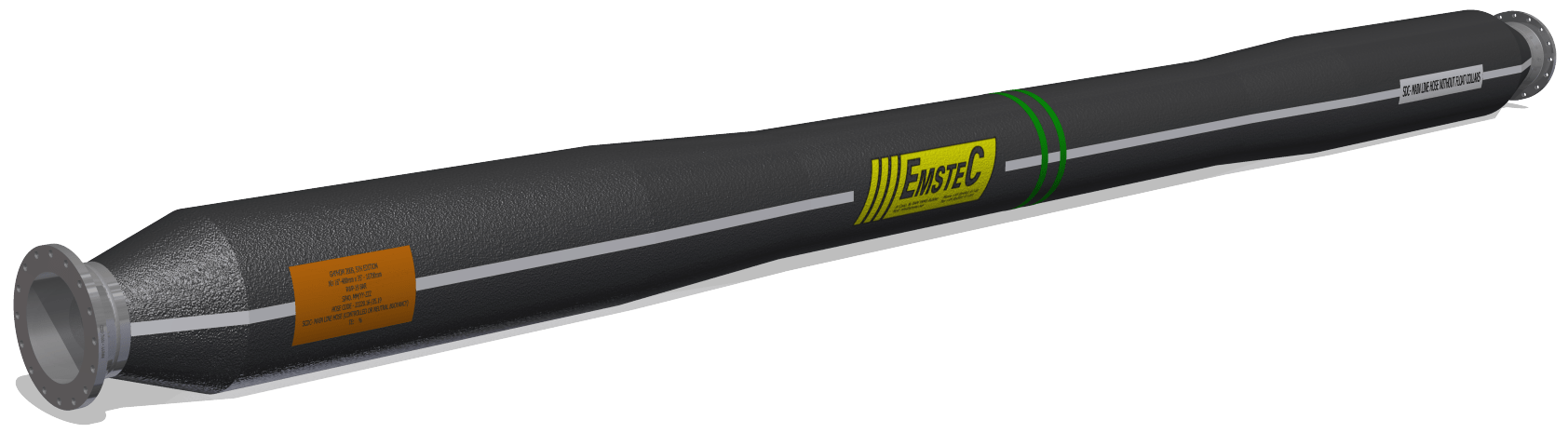

Main Line without float collars

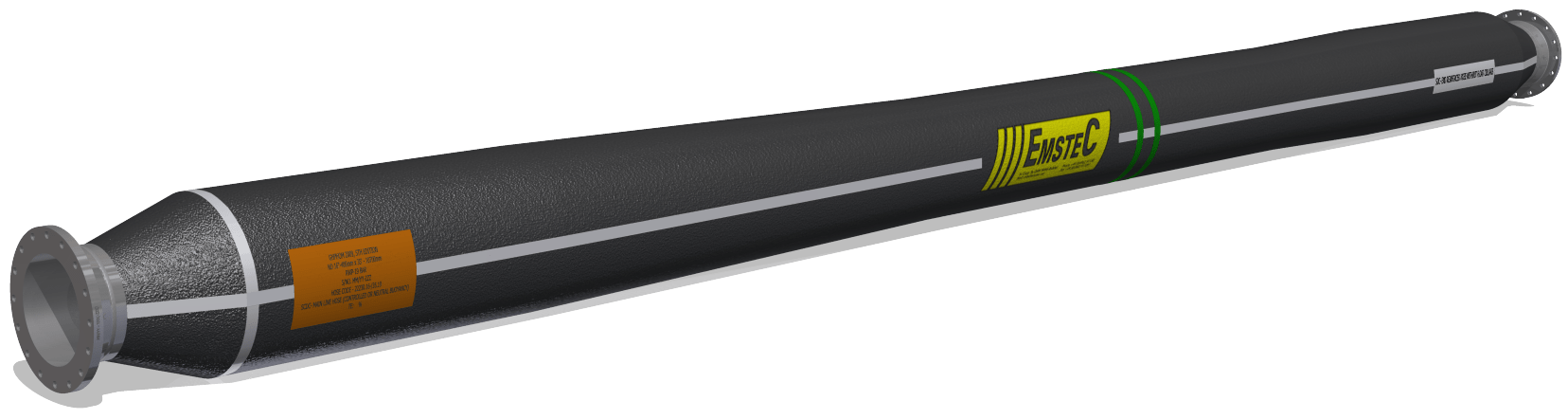

End-Reinforced without float collars i.e. off PLEM

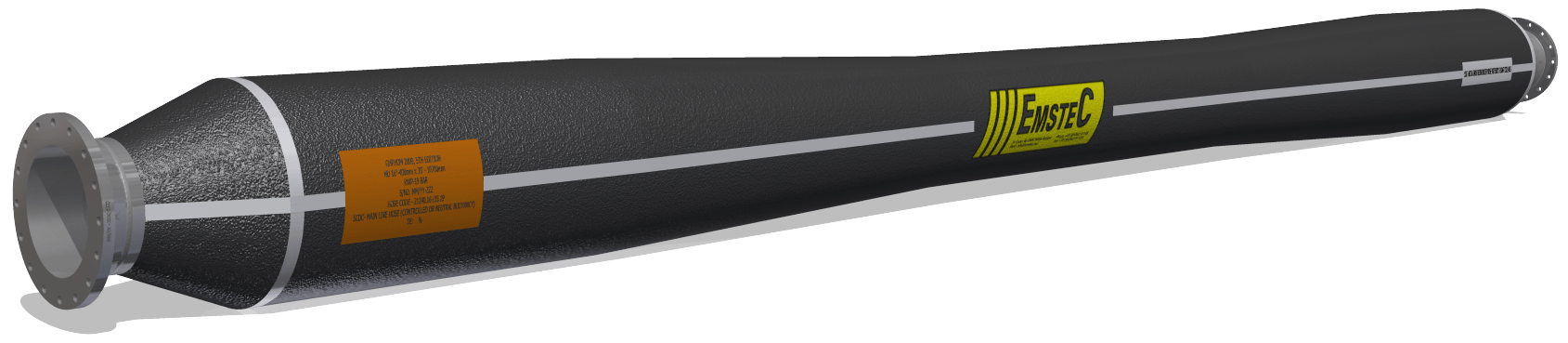

Both Ends Reinforced without float collars

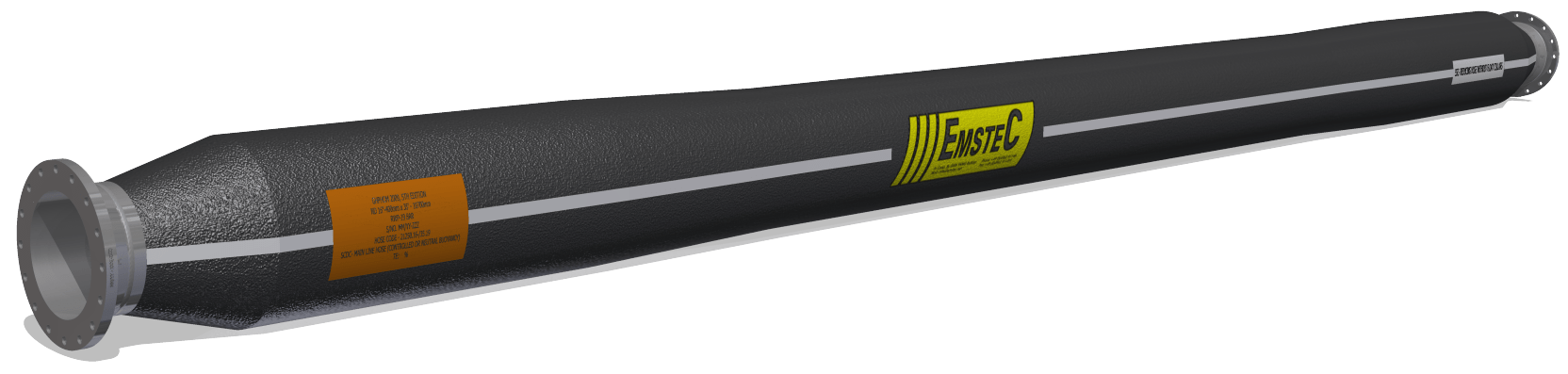

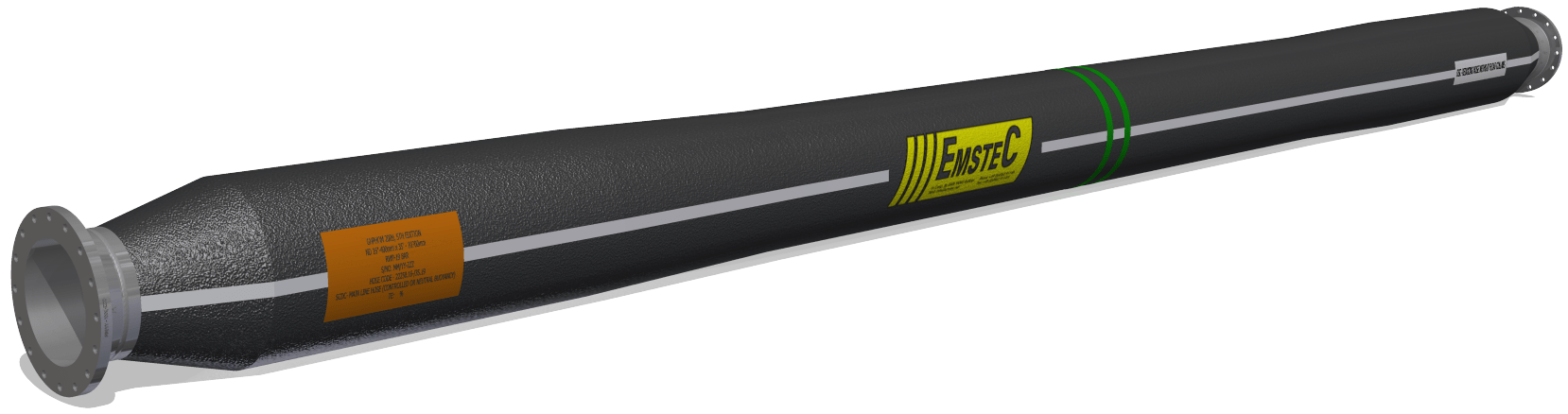

Reducing Hose without float collars

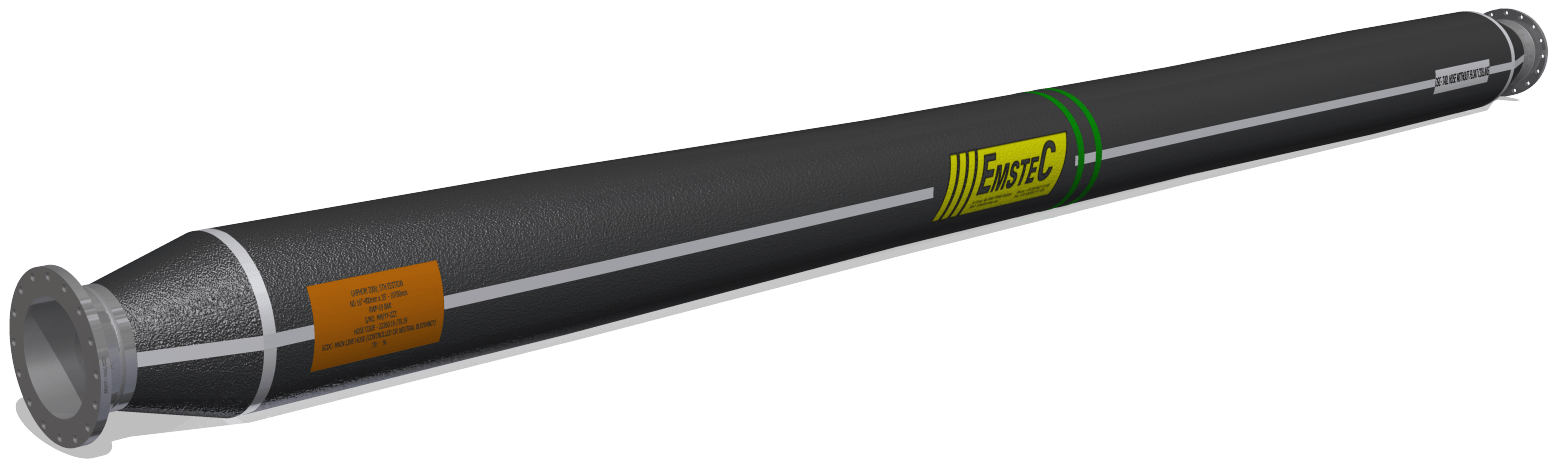

Tail Hose without float collars

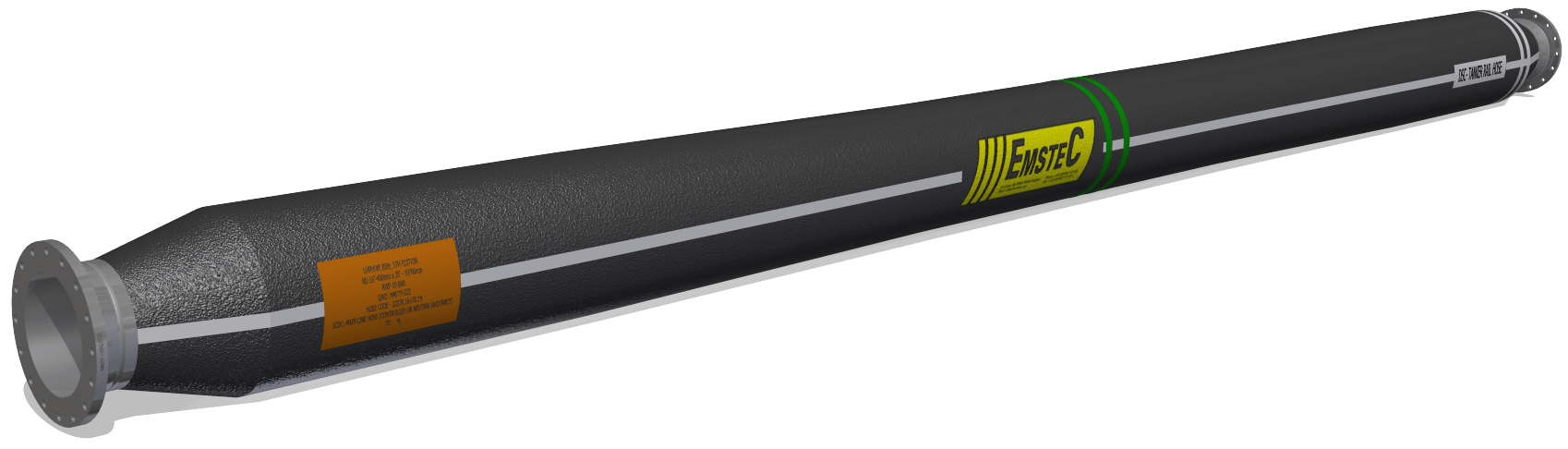

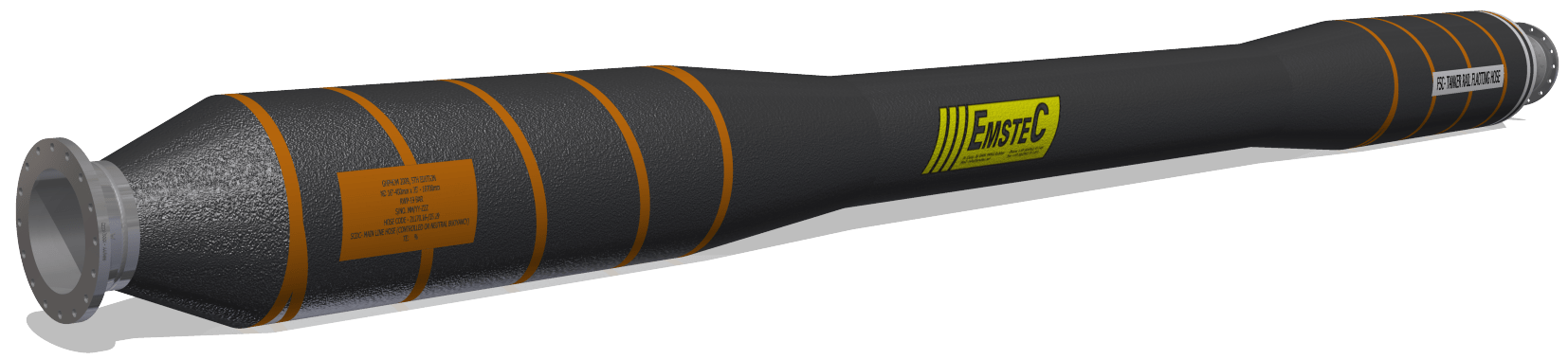

Tanker Rail

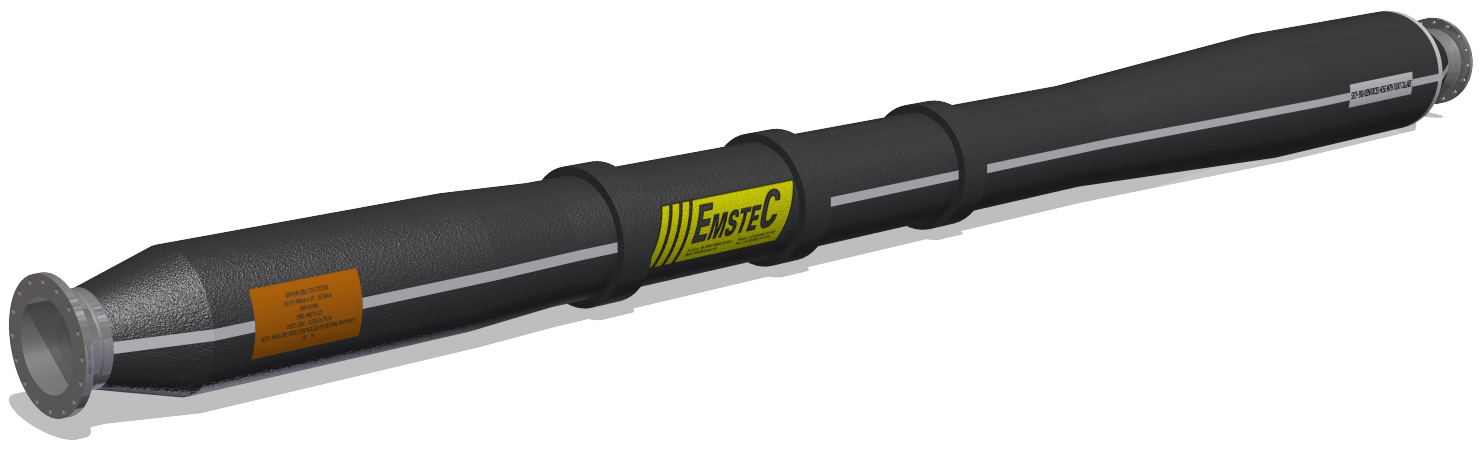

End-Reinforced with float collars i.e. under Buoy

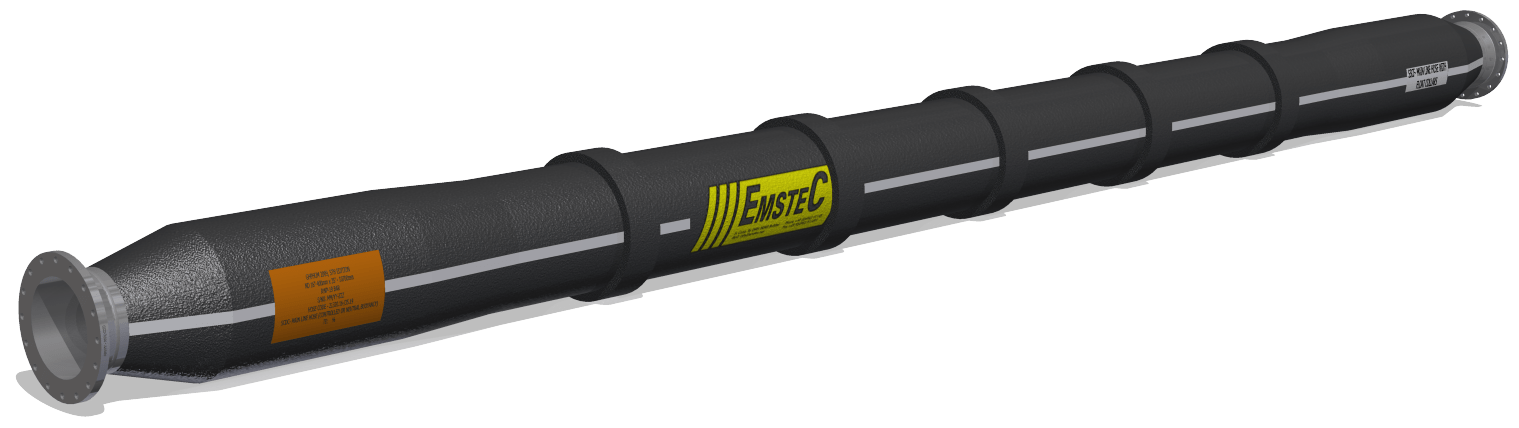

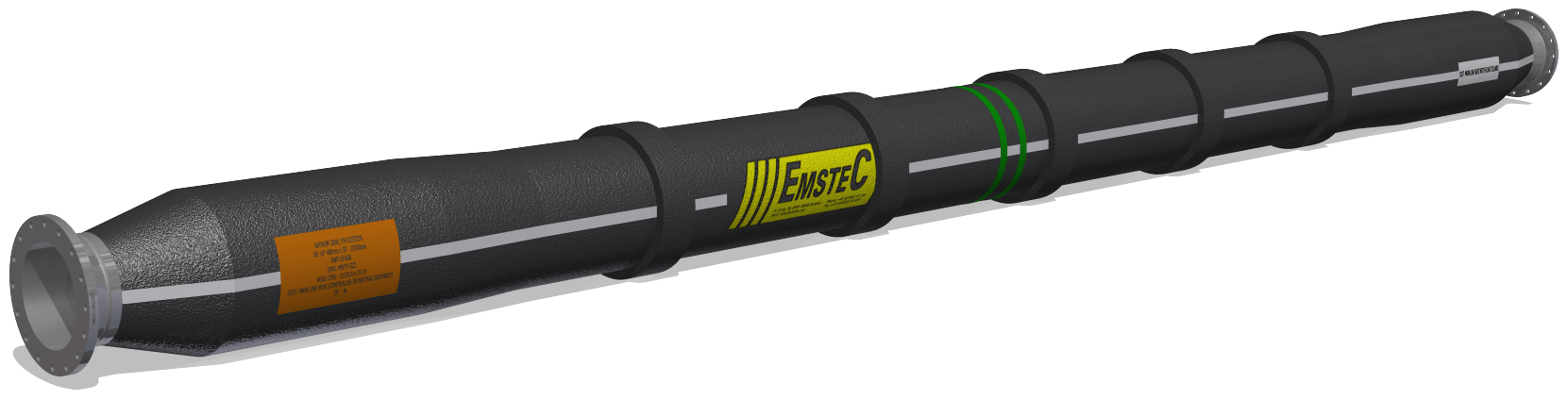

Main Line with float collars

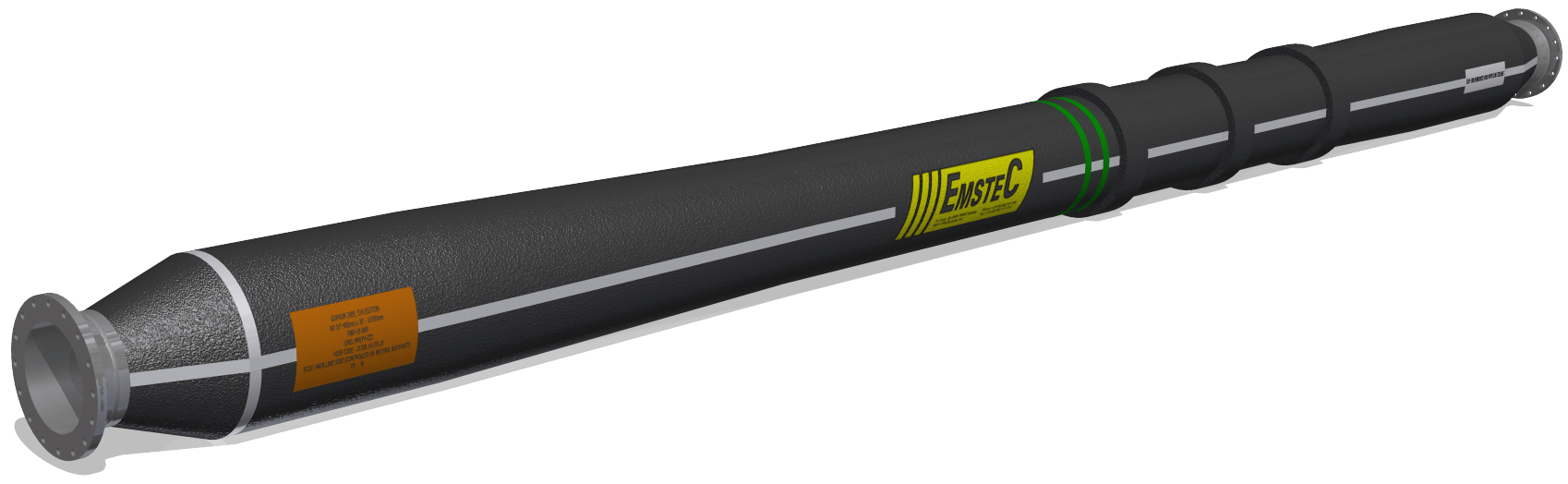

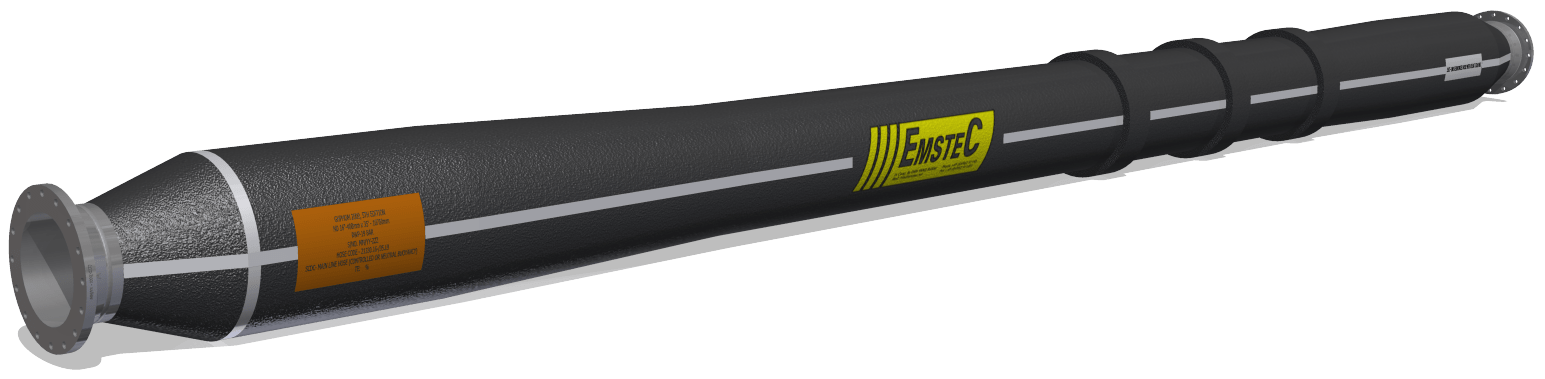

End-Reinforced with float collars i.e. off PLEM

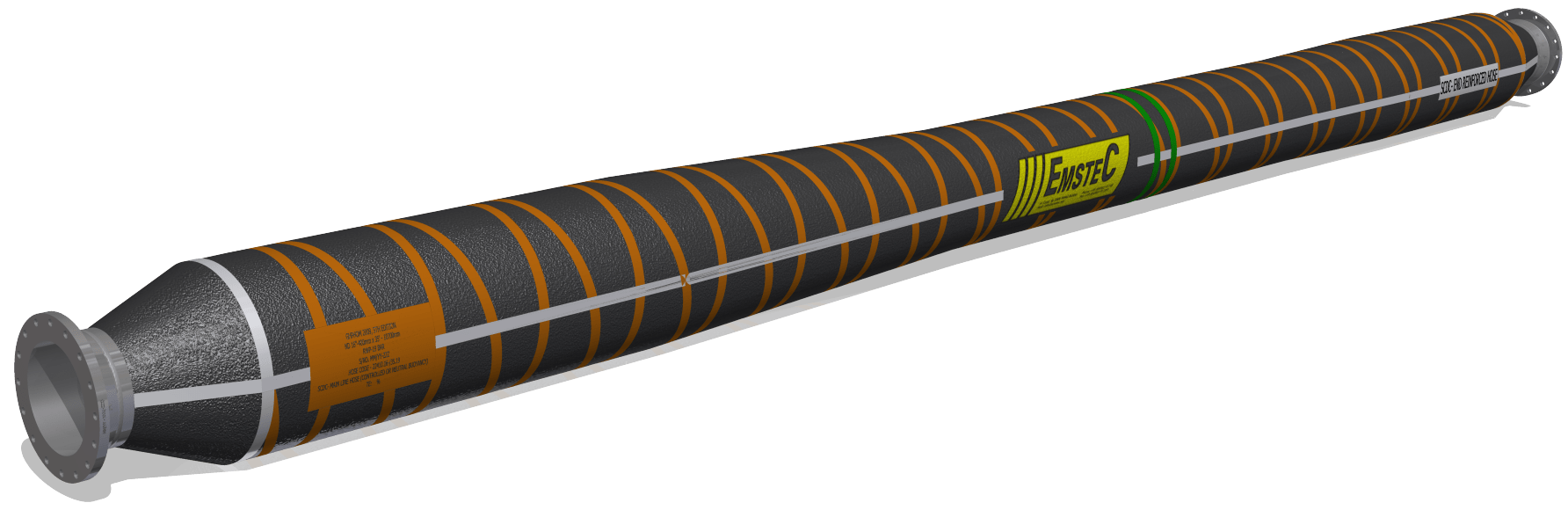

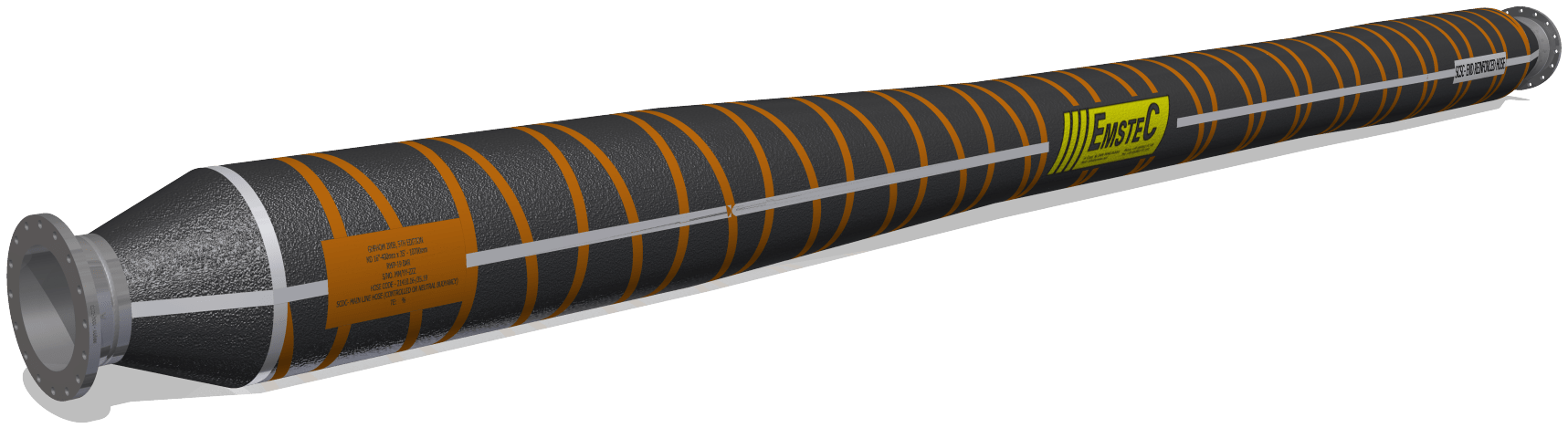

End-Reinforced i.e. FPSO

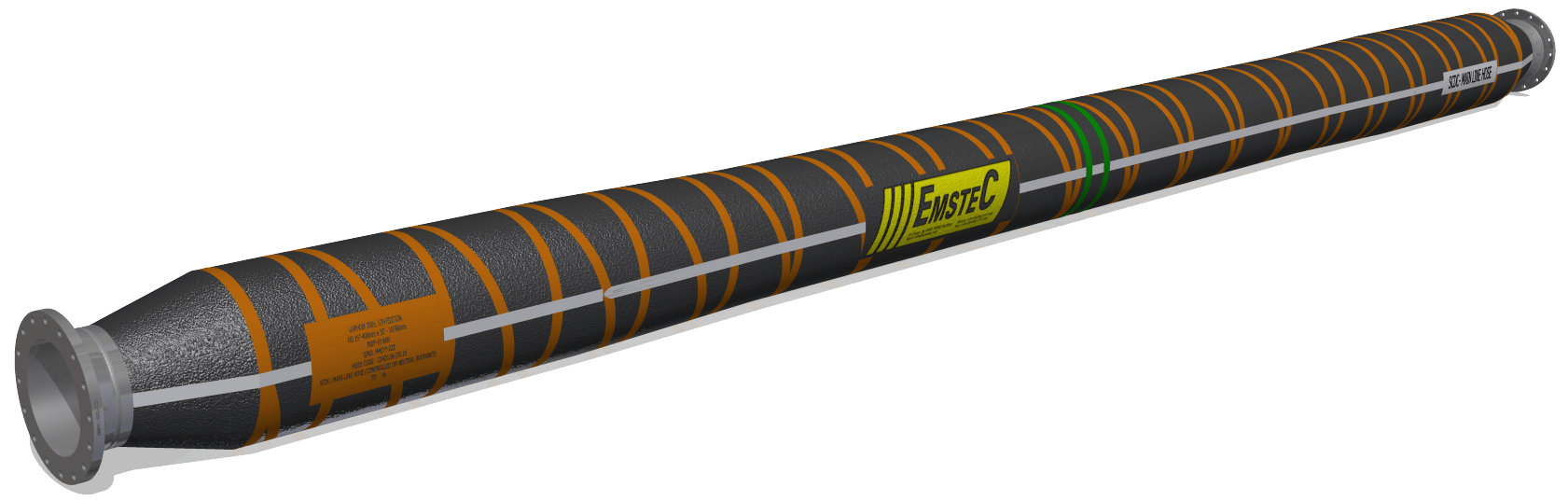

Main Line

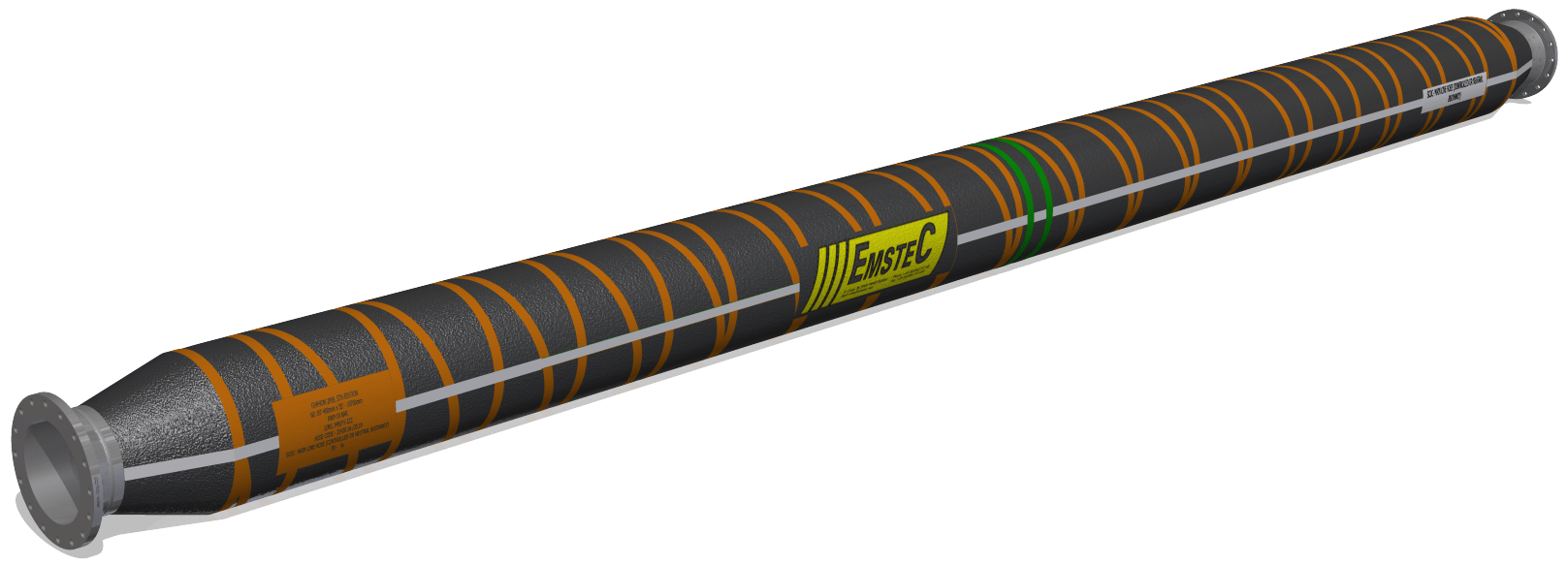

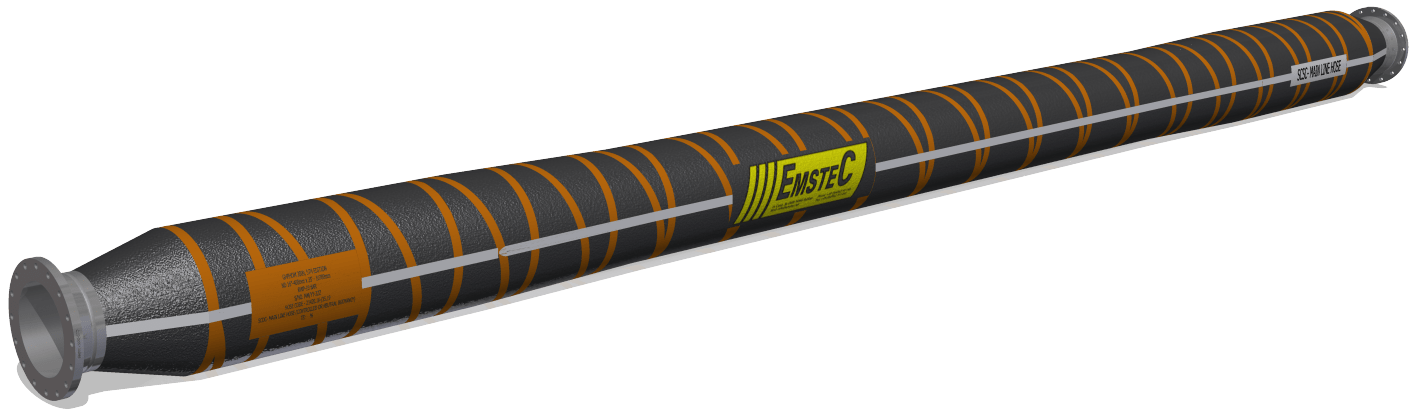

Controlled/Neutral Buoyancy

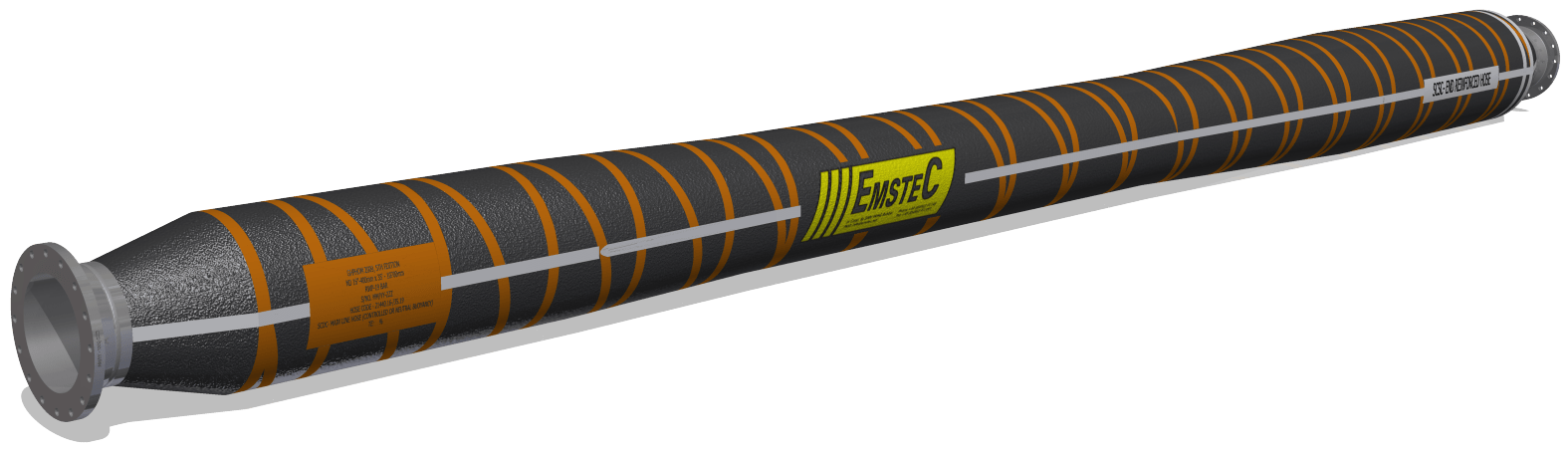

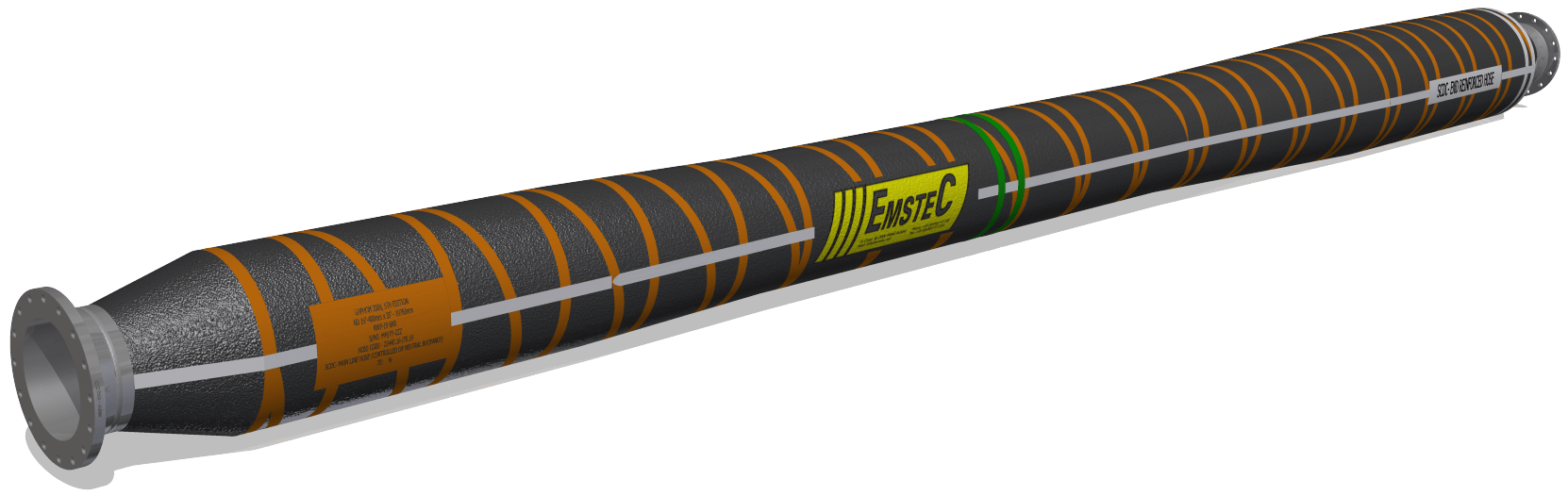

End-Reinforced i.e. Shuttle Tanker

Single Carcass Floating Hose

EMSTEC provides a range of high quality, high performance, oil suction and discharge hoses, extensively used at offshore moorings throughout the world. The EMSTEC Single Carcass Submarine hoses are utilized in high integrity sub-sea installations such as EPS, SBM, CALM, SALM offloading in addition to FPSO, FSO Tandem offloading configurations.

The EMSTEC hose fully complies with the requirements of the "OCIMF Guide to Purchasing, Manufacturing and Testing of Loading and Discharge Hoses for Offshore Moorings, Fifth Edition – 2009".

All hoses are designed and manufactured under a quality system in accordance with ISO 9001, and compliance with Pressure Equipment Directive (PED) 97/23/EC module H (hoses carry CE marking as required).

Prototype Hose manufacture and testing witnessed and verified by Bureau Veritas (Certifying Authority) and GDC International (Industry Consultant).

For any queries, please contact us.

DOWNLOAD AS PDF FILE

Performance Characteristics & Construction
Nominal Bore (mm)Standard LengthFlanges
150 (6”), 200 (8”), 250 (10”), 300 (12”), 400 (16”), 500 (20”), 600 (24”)9.1M (30’), 10.7M (35’) & 12.2M (40’) (non-standard less than 12.2M also available)ANSI B16.5 Class 150 or 300 Flat Face (FF), Hot Dip Galvanised in accordance with BS729 Part 1. (Raised Face (RF) flange face available on request)
Pressure RatingMinimum Burst PressureFlow Velocity
15 BAR, 19 BAR, 21 BAR (higher pressure ratings on request)75 BAR, 95 BAR, 105 BARMaximum of 21m/s
Fluid ProductStandard LengthMaximum Aromatic Content
Crude Oil and Liquid Petroleum Products (other than liquefied petroleum gases and liquefied natural gases).Fluid Temperature from -20°C to 82°C. Ambient Temperature from -29°C to 52°C.up to 60%
Minimum Bend RadiusElectrical Continuity
Submarine Hose - 4 x hose Nominal Bore Diameter, Floating Hose – 6 x hose Nominal Bore DiameterElectrically Continuous or Discontinuous as required.

Single Carcass Submarine Hose

EMSTEC provides a range of high quality, high performance, oil suction and discharge hoses, extensively used at offshore moorings throughout the world. The EMSTEC Single Carcass Submarine hoses are utilized in high integrity sub-sea installations such as MBM, CALM, SALM configurations (i.e. Steep ‘S’, Lazy ‘S’, Chinese Lantern).

The EMSTEC hose fully complies with the requirements of the "OCIMF Guide to Purchasing, Manufacturing and Testing of Loading and Discharge Hoses for Offshore Moorings, Fifth Edition – 2009".

All hoses are designed and manufactured under a quality system in accordance with ISO 9001, and compliance with Pressure Equipment Directive (PED) 97/23/EC module H (hoses carry CE marking as required).

For any queries, please contact us.

DOWNLOAD AS PDF FILE

Performance Characteristics & Construction
Nominal Bore (mm)Standard LengthFlanges
150 (6”), 200 (8”), 250 (10”), 300 (12”), 400 (16”), 500 (20”), 600 (24”)9.1M (30’), 10.7M (35’) & 12.2M (40’) (non-standard less than 12.2M also available)ANSI B16.5 Class 150 or 300 Flat Face (FF), Hot Dip Galvanised in accordance with BS729 Part 1. (Raised Face (RF) flange face available on request)
Pressure RatingMinimum Burst PressureFlow Velocity
15 BAR, 19 BAR, 21 BAR (higher pressure ratings on request)75 BAR, 95 BAR, 105 BARMaximum of 21m/s
Fluid ProductStandard LengthMaximum Aromatic Content
Crude Oil and Liquid Petroleum Products (other than liquefied petroleum gases and liquefied natural gases).Fluid Temperature from -20°C to 82°C. Ambient Temperature from -29°C to 52°C.up to 60%
Minimum Bend RadiusElectrical Continuity
Submarine Hose - 4 x hose Nominal Bore Diameter, Floating Hose – 6 x hose Nominal Bore DiameterElectrically Continuous or Discontinuous as required.

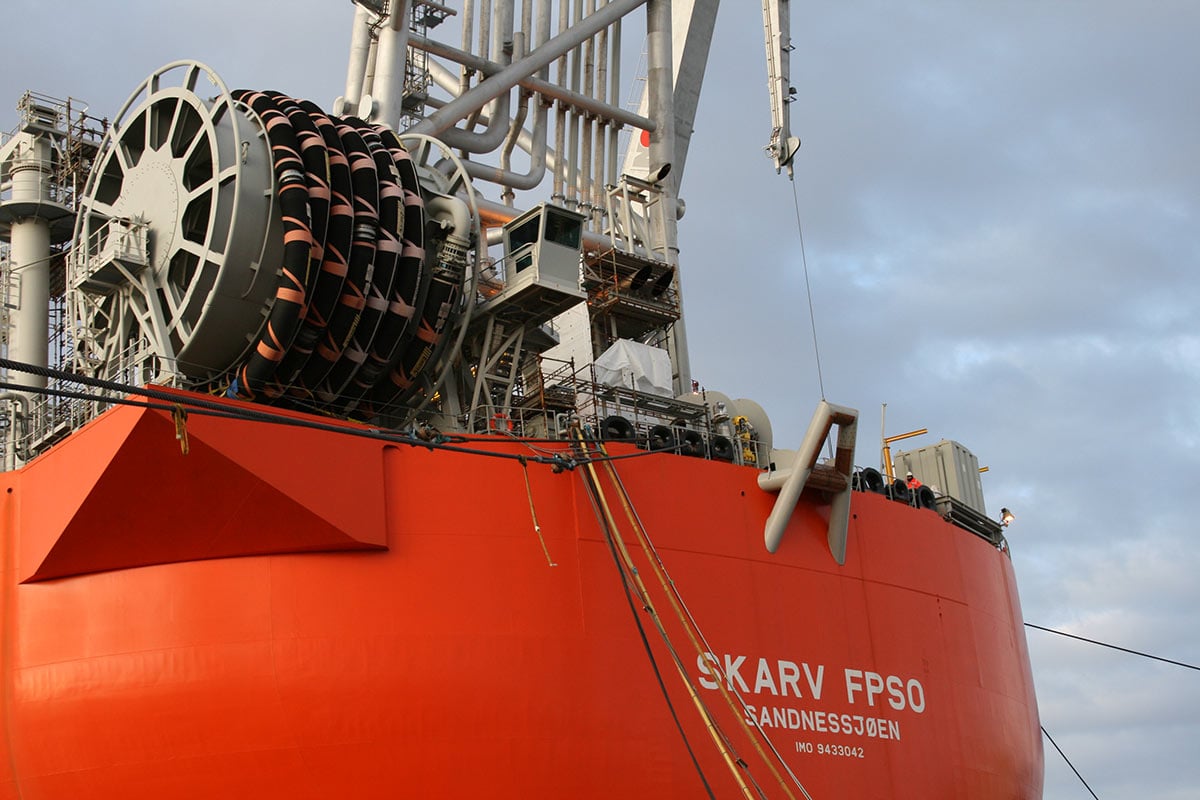

Single Carcass Catenary Hose

EMSTEC provides a range of high quality, high performance, oil suction and discharge hoses, extensively used at offshore moorings throughout the world. The EMSTEC Single Carcass Submarine hoses are utilized in high integrity sub-sea installations such as FPSO, FSO tandem offloading to DP Shuttle Tankers (i.e. Reel, Chute, Cantilever hang-off arrangements).

The EMSTEC hose fully complies with the requirements of the "OCIMF Guide to Purchasing, Manufacturing and Testing of Loading and Discharge Hoses for Offshore Moorings, Fifth Edition – 2009".

All hoses are designed and manufactured under a quality system in accordance with ISO 9001, and compliance with Pressure Equipment Directive (PED) 97/23/EC module H (hoses carry CE marking as required).

For any queries, please contact us.

DOWNLOAD AS PDF FILE

Performance Characteristics & Construction
Nominal Bore (mm)Standard LengthFlanges
150 (6”), 200 (8”), 250 (10”), 300 (12”), 400 (16”), 500 (20”), 600 (24”)9.1M (30’), 10.7M (35’) & 12.2M (40’) (non-standard less than 12.2M also available)ANSI B16.5 Class 150 or 300 Flat Face (FF), Hot Dip Galvanised in accordance with BS729 Part 1. (Raised Face (RF) flange face available on request)
Pressure RatingMinimum Burst PressureFlow Velocity
15 BAR, 19 BAR, 21 BAR (higher pressure ratings on request)75 BAR, 95 BAR, 105 BARMaximum of 21m/s
Fluid ProductStandard LengthMaximum Aromatic Content
Crude Oil and Liquid Petroleum Products (other than liquefied petroleum gases and liquefied natural gases).Fluid Temperature from -20°C to 82°C. Ambient Temperature from -29°C to 52°C.Maximum of 21m/s
Minimum Bend RadiusElectrical Continuity
Submarine Hose - 4 x hose Nominal Bore Diameter, Floating Hose – 6 x hose Nominal Bore DiameterElectrically Continuous or Discontinuous as required.

End-Reinforced Half Floating

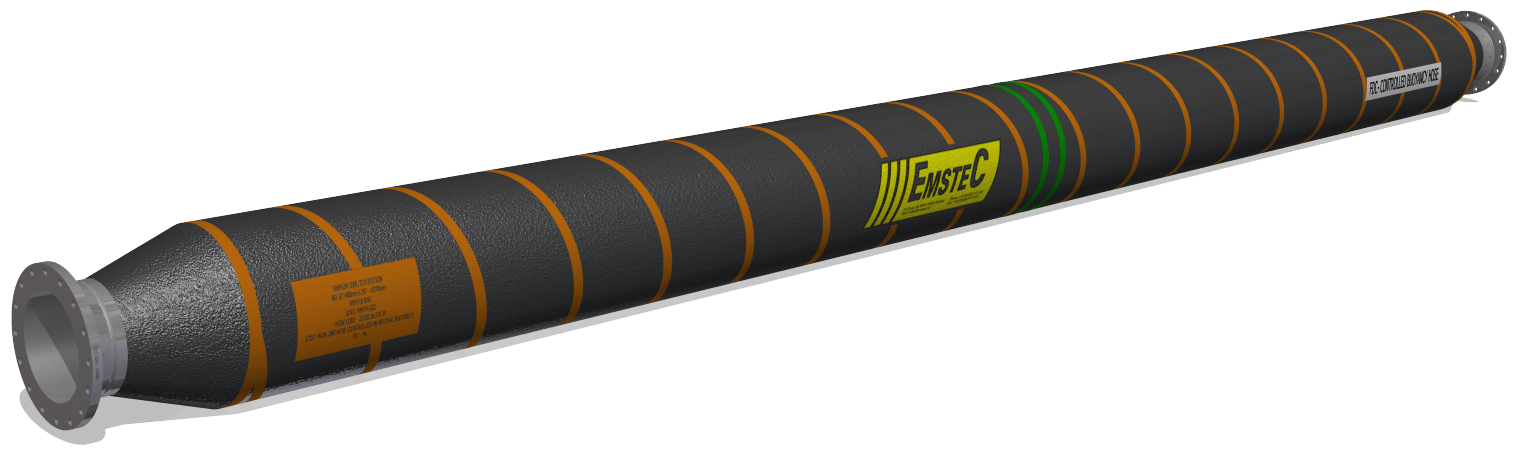

Controlled Buoyancy

Main Line Fully Floating

Main Line Half Floating

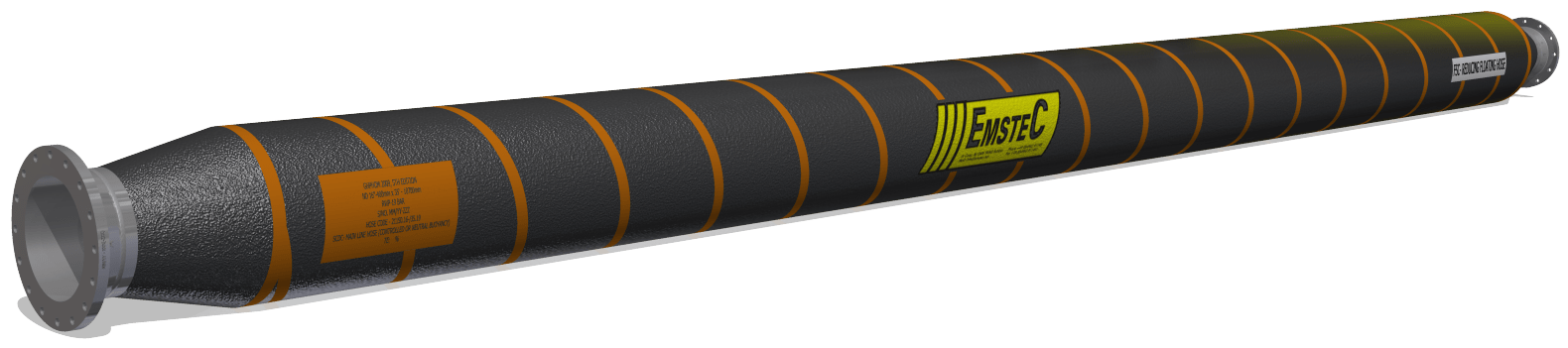

Reducing Hose Floating

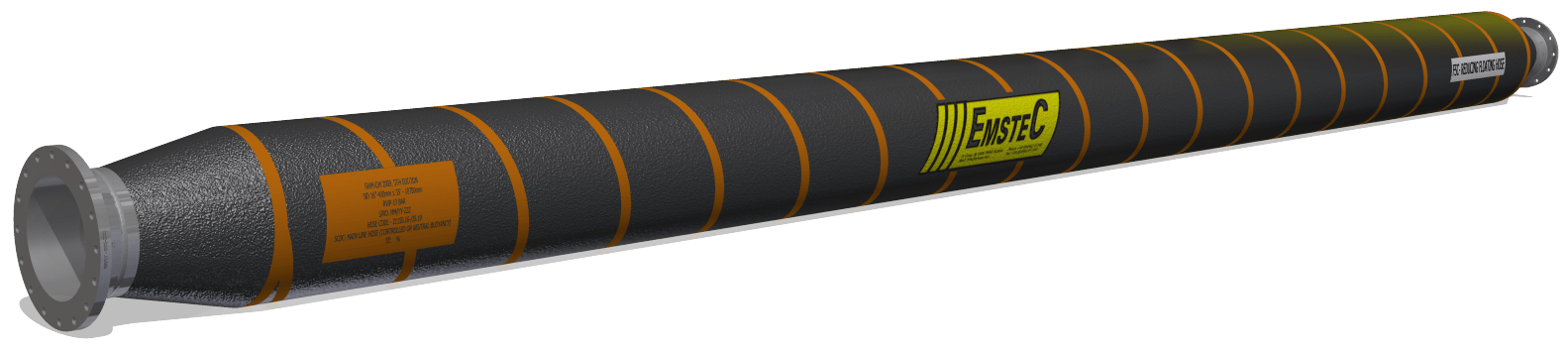

Tail Floating

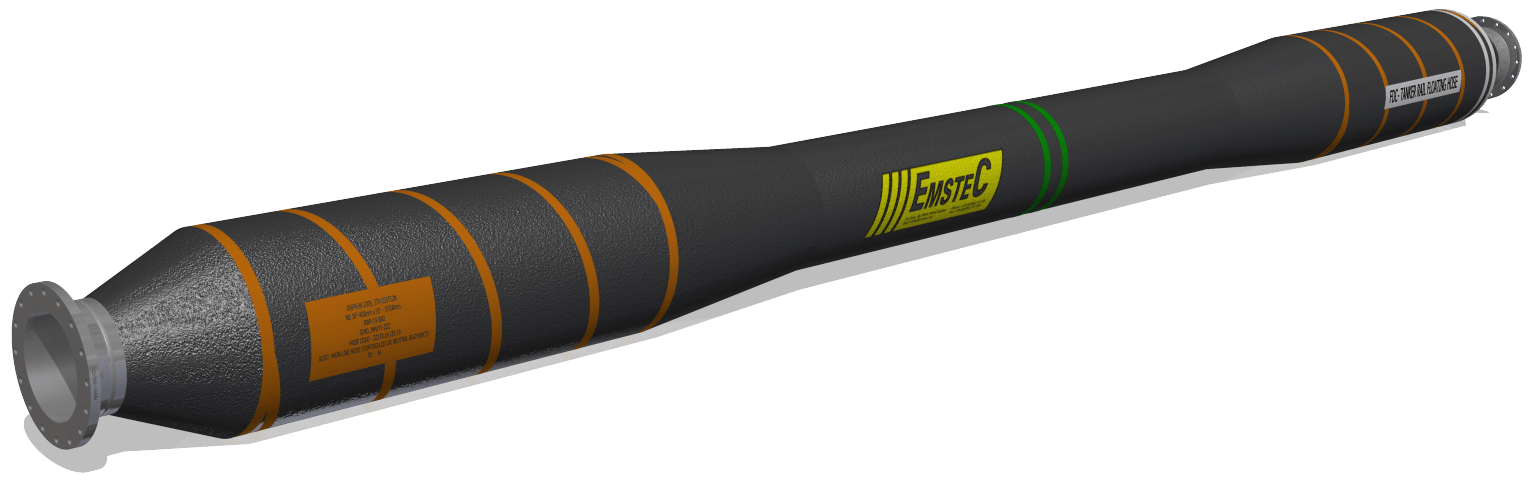

Tanker Rail Floating

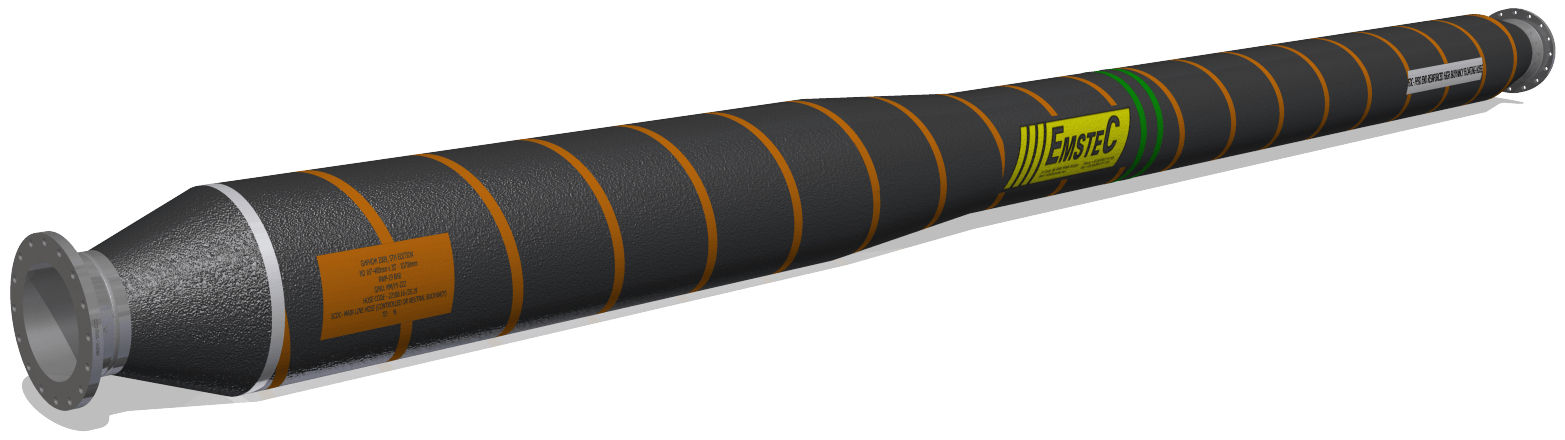

FPSO End-Reinforced High Buoyancy Floating

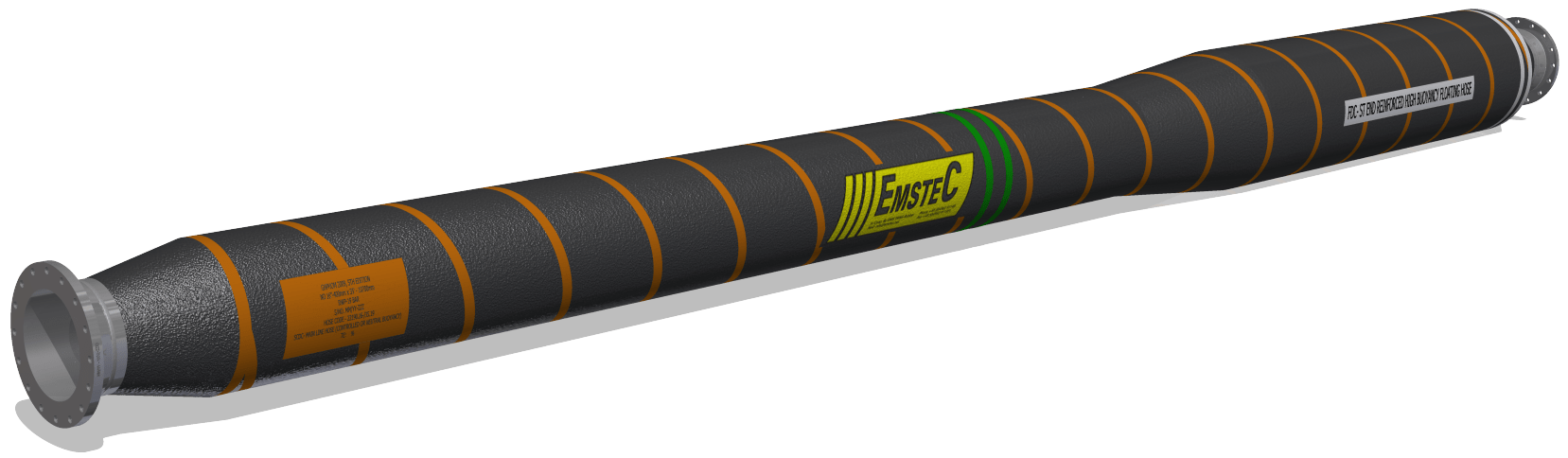

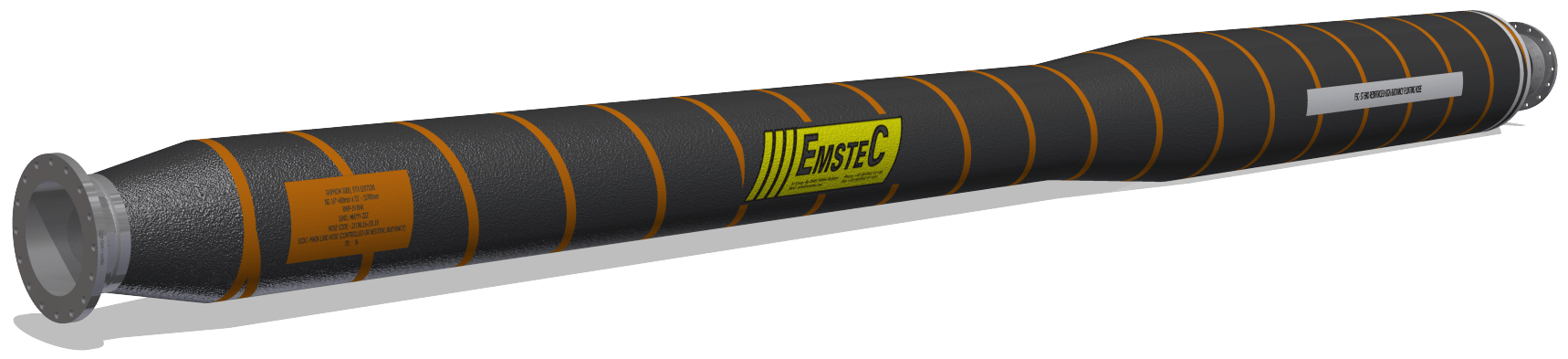

ST End-Reinforced High Buoyancy Floating

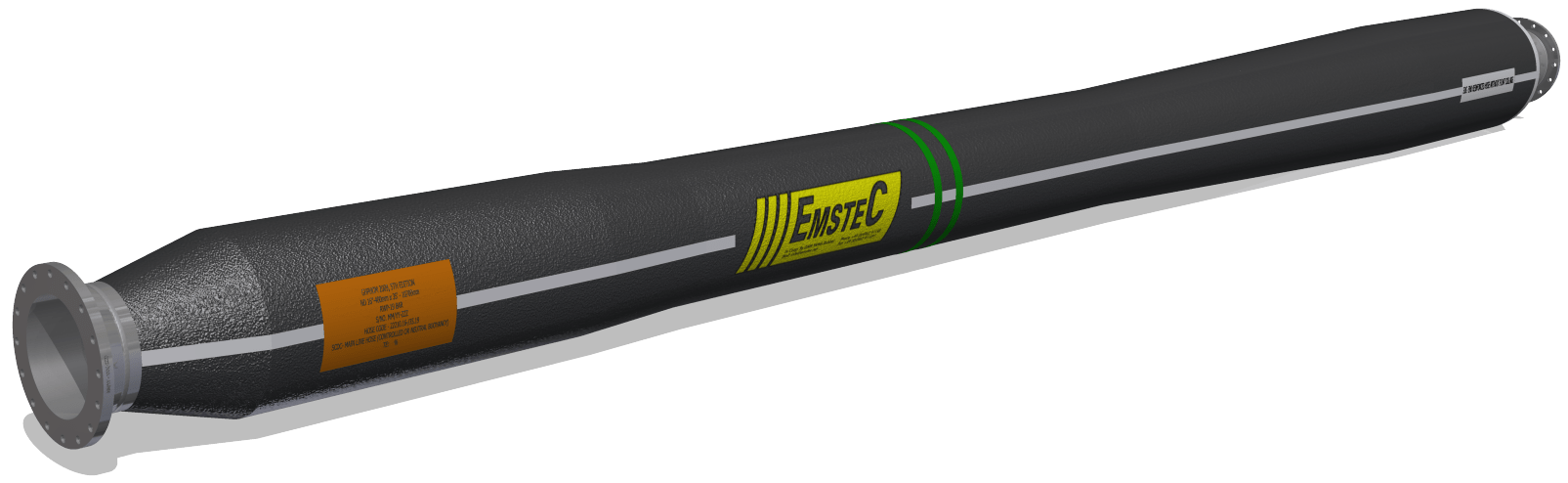

End-Reinforced without float collars i.e. under Buoy

Main Line without float collars

End-Reinforced without float collars i.e. off PLEM

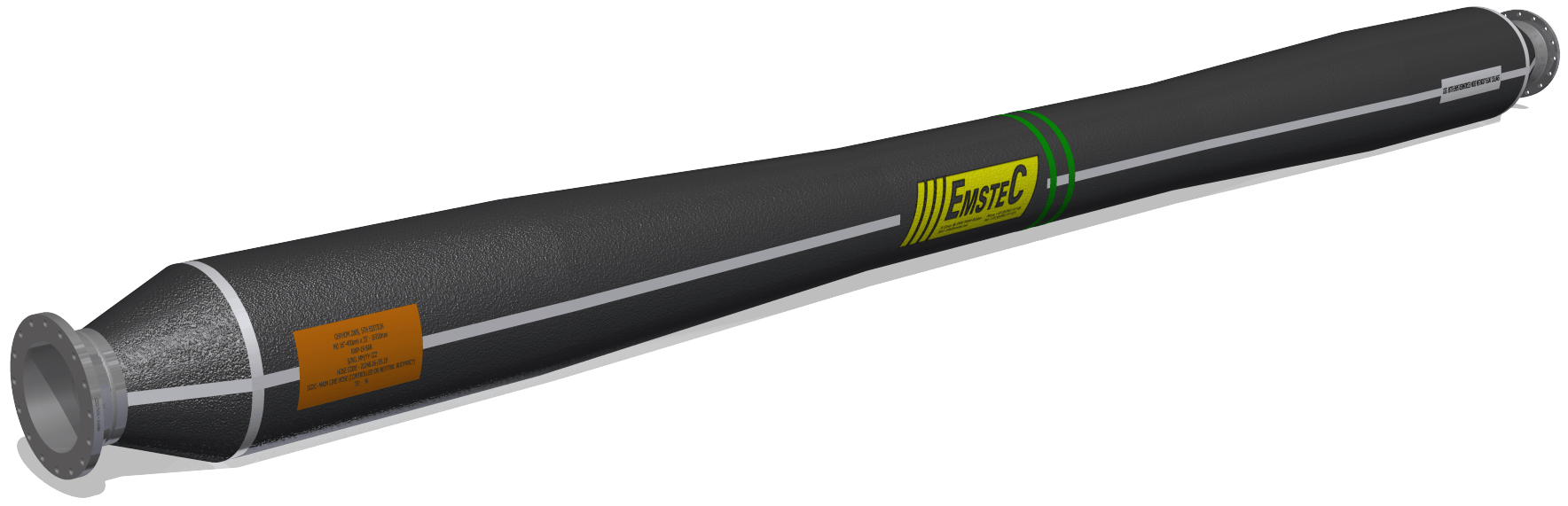

Both Ends Reinforced without float collars

Reducing Hose without float collars

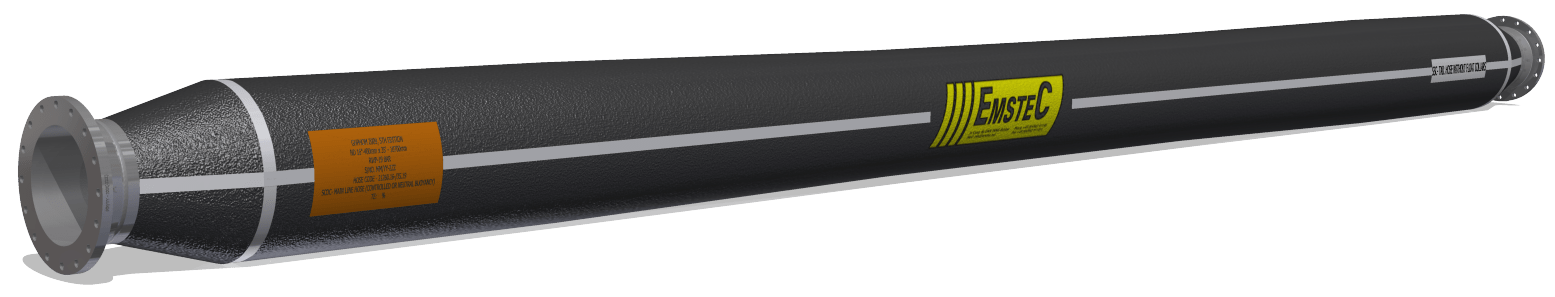

Tail Hose without float collars

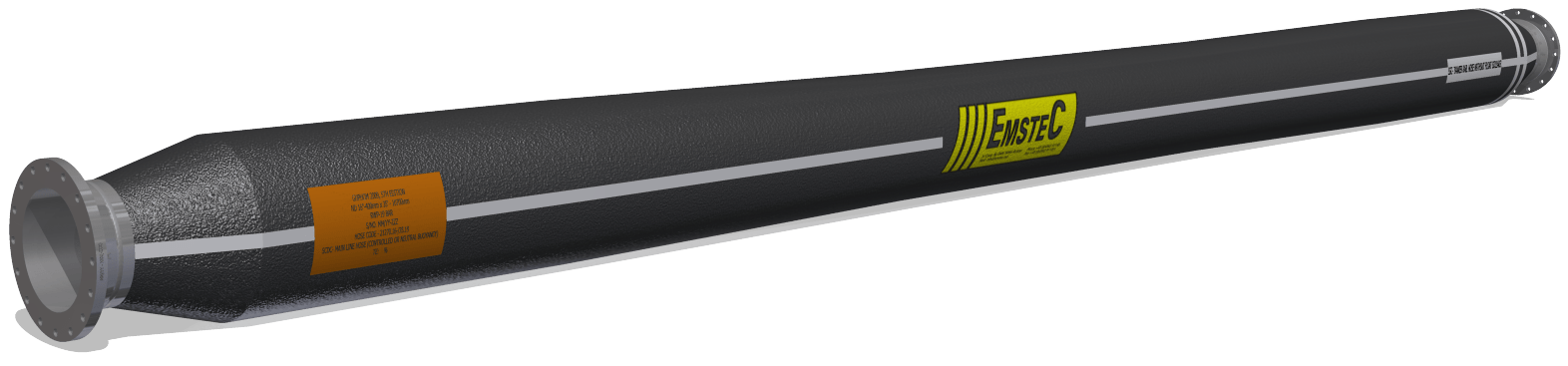

Tanker Rail

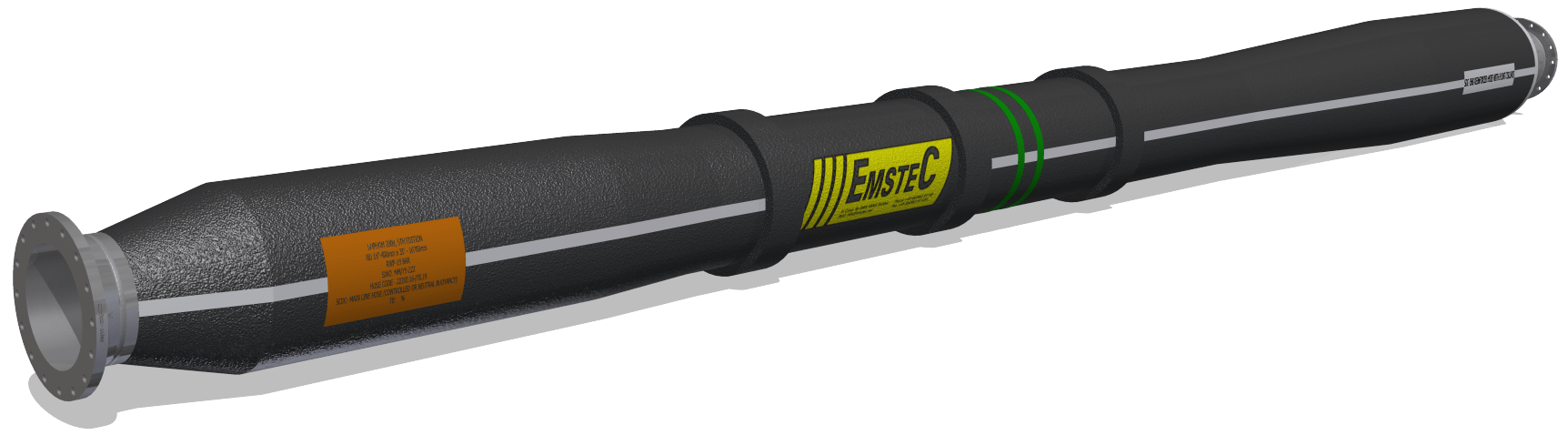

End-Reinforced with float collars i.e. under Buoy

Main Line with float collars

End-Reinforced with float collars i.e. off PLEM

End-Reinforced i.e. FPSO

Main Line

Main Line Controlled/Neutral Buoyancy

End-Reinforced i.e. Shuttle Tanker

Double Carcass Floating Hose

EMSTEC provides a range of high quality, high performance, oil suction and discharge hoses, extensively used at offshore moorings throughout the world. The EMSTEC Double Carcass Floating hoses are utilized in high integrity surface installations such as EPS, SBM, CALM, SALM offloading in addition to FPSO, FSO Tandem offloading configurations.

In addition to the standard hose carcass (commonly termed ‘primary’ carcass), EMSTEC Double Carcass Floating hoses incorporate an additional second carcass designed to contain any product escaping from the standard carcass as a result of a slow leak or sudden failure. An effective, robust and reliable leak detection and indication system is provided.

EMSTEC Double Carcass Submarine hoses fully comply with the requirements of the "OCIMF Guide to Purchasing, Manufacturing and Testing of Loading and Discharge Hoses for Offshore Moorings, Fifth Edition – 2009".

All hoses are designed and manufactured under a quality system in accordance with ISO 9001, and is in compliance with Pressure Equipment Directive (PED) 97/23/EC module H (hoses carry CE marking as required).

For any queries, please contact us.

Download as PDF file

Performance Characteristics & Construction
Nominal Bore (mm)Standard LengthFlanges
150 (6”), 200 (8”), 250 (10”), 300 (12”), 400 (16”), 500 (20”), 600 (24”)9.1M (30’), 10.7M (35’) & 12.2M (40’) (non-standard less than 12.2M also available)ANSI B16.5 Class 150 or 300 Flat Face (FF), Hot Dip Galvanised in accordance with BS729 Part 1. (Raised Face (RF) flange face available on request)
Pressure RatingMinimum Burst PressureFlow Velocity
15 BAR, 19 BAR, 21 BAR (higher pressure ratings on request)75 BAR, 95 BAR, 105 BARMaximum of 21m/s
Fluid ProductStandard LengthFlanges
Crude Oil and Liquid Petroleum Products (other than liquefied petroleum gases and liquefied natural gases).Fluid Temperature from -20°C to 82°C. Ambient Temperature from -29°C to 52°C.up to 60%
Minimum Bend RadiusElectrical Continuity
Submarine Hose - 4 x hose Nominal Bore Diameter, Floating Hose – 6 x hose Nominal Bore DiameterElectrically Continuous or Discontinuous as required.

Double Carcass Submarine Hose

EMSTEC provides a range of high quality, high performance, oil suction and discharge hoses, extensively used at offshore moorings throughout the world. The EMSTEC Double Carcass Submarine hoses are utilized in high integrity sub-sea installations such as MBM, CALM, SALM configurations (i.e. Steep ‘S’, Lazy ‘S’, Chinese Lantern).

In addition to standard hose carcass (commonly termed ‘primary’ carcass), EMSTEC Double Carcass Submarine hoses incorporate an additional second carcass designed to contain any product escape from the standard carcass as a result of a slow leak or sudden failure. Effective, robust and reliable leak detection and indication system is provided.

The EMSTEC hose fully complies with the requirements of the "OCIMF Guide to Purchasing, Manufacturing and Testing of Loading and Discharge Hoses for Offshore Moorings, Fifth Edition – 2009".

All hoses are designed and manufactured under a quality system in accordance with ISO 9001, and compliance with Pressure Equipment Directive (PED) 97/23/EC module H (hoses carry CE marking as required).

For any queries, please contact us.

Download as PDF file

Performance Characteristics & Construction
Nominal Bore (mm)Standard LengthFlanges
150 (6”), 200 (8”), 250 (10”), 300 (12”), 400 (16”), 500 (20”), 600 (24”)9.1M (30’), 10.7M (35’) & 12.2M (40’) (non-standard less than 12.2M also available)ANSI B16.5 Class 150 or 300 Flat Face (FF), Hot Dip Galvanised in accordance with BS729 Part 1. (Raised Face (RF) flange face available on request)
Pressure RatingMinimum Burst PressureFlow Velocity
15 BAR, 19 BAR, 21 BAR (higher pressure ratings on request)75 BAR, 95 BAR, 105 BARMaximum of 21m/s
Fluid ProductStandard LengthFlanges
Crude Oil and Liquid Petroleum Products (other than liquefied petroleum gases and liquefied natural gases).Fluid Temperature from -20°C to 82°C. Ambient Temperature from -29°C to 52°C.up to 60%
Minimum Bend RadiusElectrical Continuity
Submarine Hose - 4 x hose Nominal Bore Diameter, Floating Hose – 6 x hose Nominal Bore DiameterElectrically Continuous or Discontinuous as required.

Double Carcass Catenary Hose

EMSTEC provides a range of high quality, high performance, oil suction and discharge hoses, extensively used at offshore moorings throughout the world. The EMSTEC Double Carcass Submarine hoses are utilized in high integrity sub-sea installations such as FPSO, FSO tandem offloading to DP Shuttle Tankers (i.e. Reel, Chute, Cantilever hang-off arrangements).

In addition to the standard hose carcass (commonly termed ‘primary’ carcass), EMSTEC Double Carcass Catenary hoses incorporate an additional second carcass designed to contain any product escaping from the standard carcass as a result of a slow leak or sudden failure. Effective, robust and reliable leak detection and indication system is provided.

The EMSTEC hose fully complies with the requirements of the "OCIMF Guide to Purchasing, Manufacturing and Testing of Loading and Discharge Hoses for Offshore Moorings, Fifth Edition – 2009".

All hoses are designed and manufactured under a quality system in accordance with ISO 9001, and compliance with Pressure Equipment Directive (PED) 97/23/EC module H (hoses carry CE marking as required).

For any queries, please contact us.

Download as PDF file

Performance Characteristics & Construction
Nominal Bore (mm)Standard LengthFlanges
150 (6”), 200 (8”), 250 (10”), 300 (12”), 400 (16”), 500 (20”), 600 (24”)9.1M (30’), 10.7M (35’) & 12.2M (40’) (non-standard less than 12.2M also available)ANSI B16.5 Class 150 or 300 Flat Face (FF), Hot Dip Galvanised in accordance with BS729 Part 1. (Raised Face (RF) flange face available on request)
Pressure RatingMinimum Burst PressureFlow Velocity
15 BAR, 19 BAR, 21 BAR (higher pressure ratings on request)75 BAR, 95 BAR, 105 BARMaximum of 21m/s
Fluid ProductStandard LengthFlanges
Crude Oil and Liquid Petroleum Products (other than liquefied petroleum gases and liquefied natural gases).Fluid Temperature from -20°C to 82°C. Ambient Temperature from -29°C to 52°C.up to 60%
Minimum Bend RadiusElectrical Continuity
Submarine Hose - 4 x hose Nominal Bore Diameter, Floating Hose – 6 x hose Nominal Bore DiameterElectrically Continuous or Discontinuous as required.

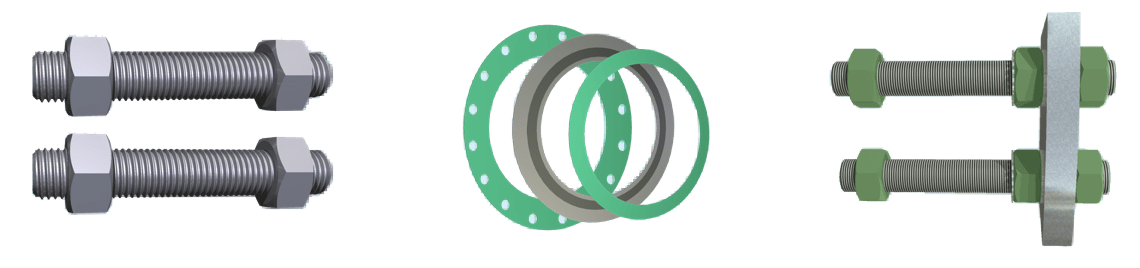

Flange Jointings

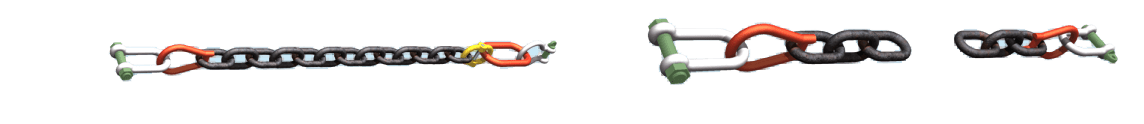

Chain Assemblies

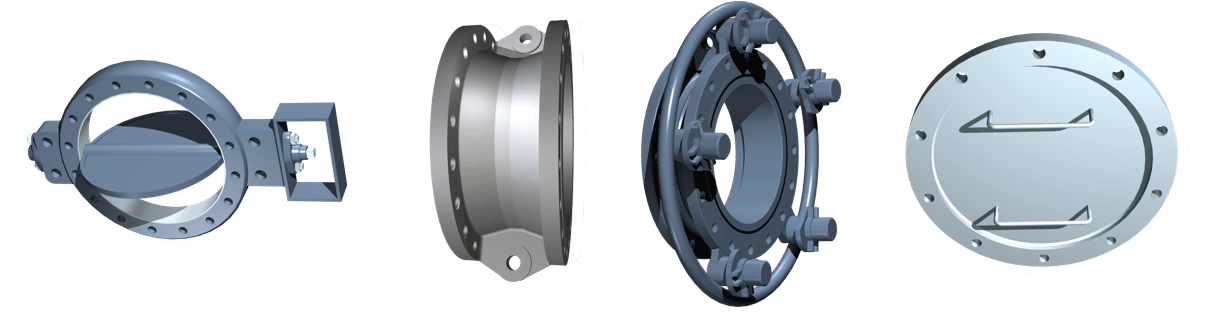

Hose End Fittings

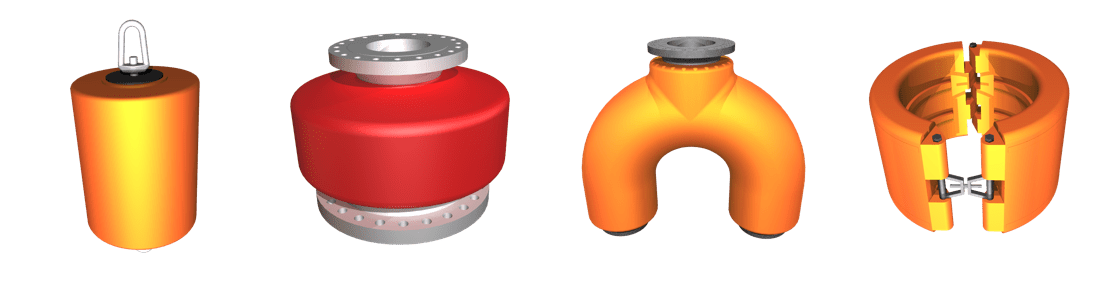

Buoyancy Equipment

Hose Marker Light

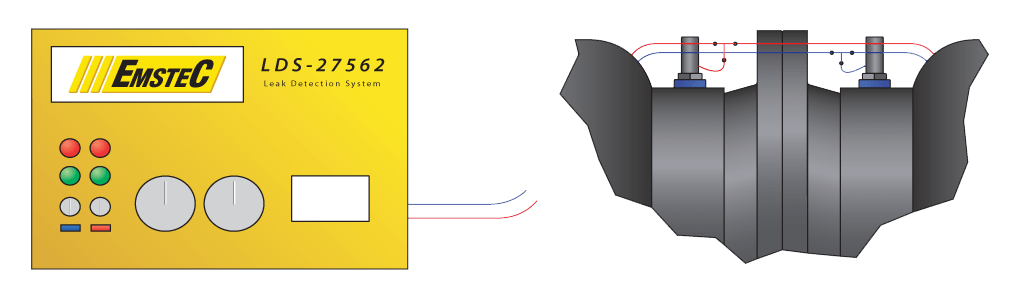

Leak Detection System

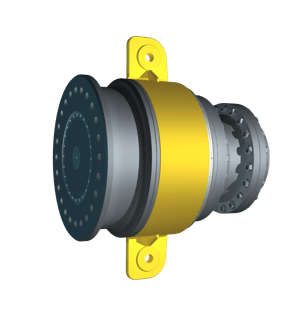

Special Hose Connector

Lifting Beam

Ancillary Equipment

EMSTEC provides a range of high quality, high performance, oil suction and discharge hoses, extensively used at offshore moorings throughout the world. The EMSTEC Single Carcass and Double Carcass hose range is complemented by a range of Ancillary Equipment in addition to equipment to aid Transportation, Handling and Testing.

For performance characteristics and specification, please refer to EMSTEC equipment data sheets.

For any queries, please contact us.

DOWNLOAD AS PDF FILE
